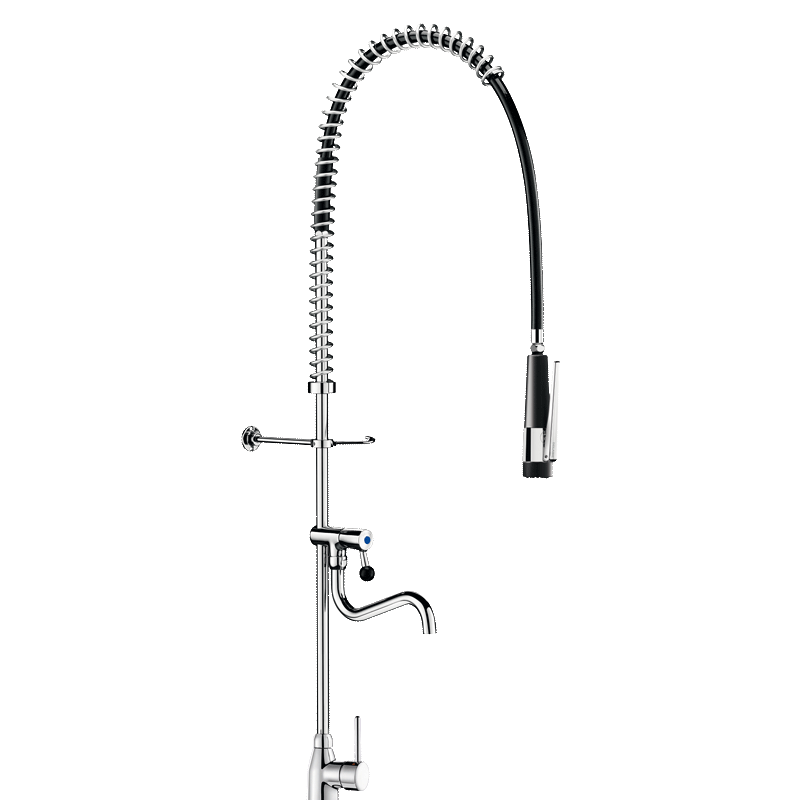

Single hole pre-rinse set with mixer

Ref. 5825
With bib tap and swivelling tubular spout
  • Single hole pre-rinse set with mixer
Single hole pre-rinse set with mixer

DESCRIERE

Single hole pre-rinse set with mixer

Ref. 5825

Complete pre-rinse set with bib tap.

Deck-mounted, single hole mixer with slimline control lever.

Suitable for intensive use in professional kitchens.

Supplied with F3/8" flexible connectors and non-return valves.

Bib tap with swivelling tubular spout L. 200mm.

- full flow rate 16 lpm within a 90° turn.

- valve head with reinforced mechanism and ergonomic control.

Black hand spray with adjustable jet and 10 lpm flow rate at the outlet (ref. 433009).

Scale-resistant hand spray with shock-resistant tip.

Black, reinforced, food-grade flexible hose L. 0.95m.

¾" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Anti-torsion rotating nut and PVC sheath

Comfort: ergonomic control, swivelling spout

Rapid-fill: full flow rate within the first 90°

Hygiene: PVC flexible, scale-resistant spray

Caracteristici Tehnice

Single hole pre-rinse set with mixer

Ref. 5825
Debit bib tap 16 lpm; 10 lpm via the hand spray
Conector F3/8
Finisaj Chrome-plated brass
Drop Height 302 - 548 mm
Width to the wall 35 - 162 mm
Inaltime 1105 - 1225 mm
Single hole pre-rinse set with mixer - scheme

DOWNLOADS

Single hole pre-rinse set with mixer

Ref. 5825 To download one or several documents linked to this product, please select the type of file you require :
