Single hole pre-rinse set with mixer and telescopic spout

Ref. 6892
With bib tap and telescopic spout
  • Single hole pre-rinse set with mixer and telescopic spout
print
phone
Single hole pre-rinse set with mixer and telescopic spout

DESCRIERE

Single hole pre-rinse set with mixer and telescopic spout

Ref. 6892

Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.

Deck-mounted single hole mixer with slimline control lever.

Supplied with F3/8" flexibles and non-return valves.

Bib tap with telescopic, swivelling spout L. 200 - 290mm.

- flow rate 16 lpm at the outlet.

- valve head with control knob.

White hand spray with adjustable jet and 10 lpm flow rate at the outlet (ref. 433003).

Scale-resistant hand spray with shock-resistant tip.

Reinforced, food-grade, white flexible hose L. 0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Rapid fill: full flow rate within 1/2 turn

Telescopic, swivelling rapid-fill spout

Superior durability: water-free valve head

Anti-torsion rotating nut and PVC sheath

Caracteristici Tehnice

Single hole pre-rinse set with mixer and telescopic spout

Ref. 6892
Debit 16 lpm bib tap; 10 lpm via the hand spray
Conector 3/4"
Finisaj Chrome-plated brass
Drop Height 300 - 540 mm
Width to the wall 35 - 162 mm
Inaltime 1105 - 1225 mm

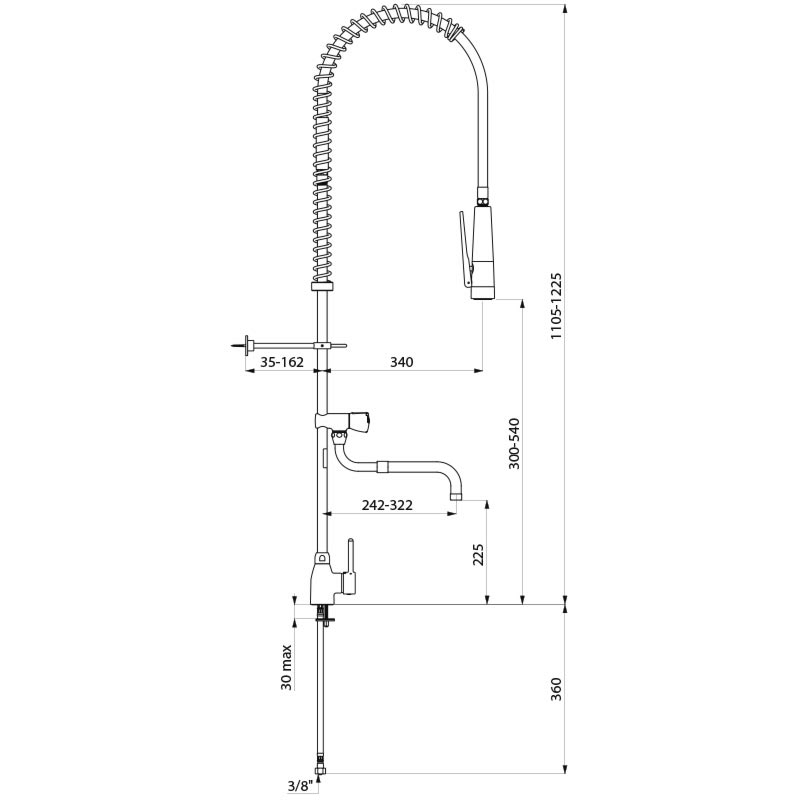

Single hole pre-rinse set with mixer and telescopic spout - scheme

DOWNLOADS

Single hole pre-rinse set with mixer and telescopic spout

Ref. 6892 To download one or several documents linked to this product, please select the type of file you require :
