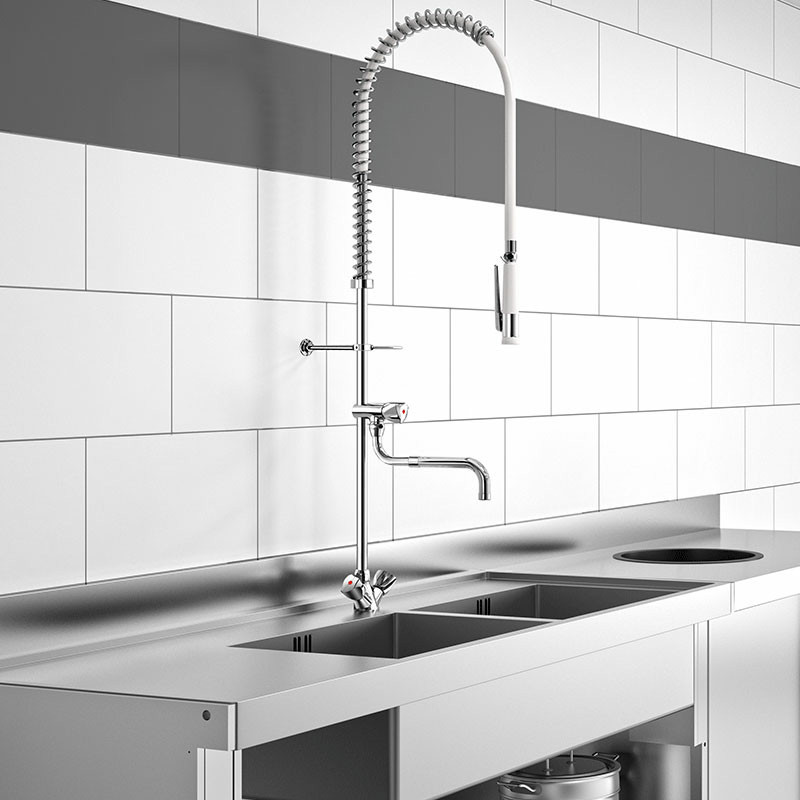

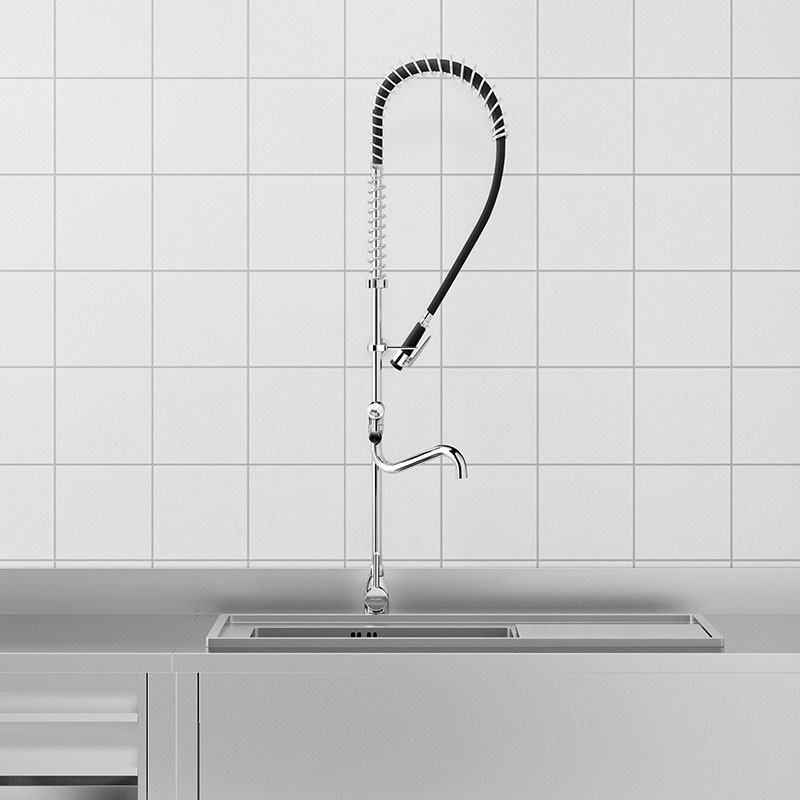

Pre-rinse set with mixer

Ref. 5625
With bib tap and swivelling telescopic spout
  • Pre-rinse set with mixer
  • Pre-rinse set with mixer
  • Pre-rinse set with mixer
  • Pre-rinse set with mixer
Pre-rinse set with mixer

DESCRIERE

Pre-rinse set with mixer

Ref. 5625

Complete pre-rinse set with bib tap.

Single hole deck-mounted mixer with slimline control lever.

Suitable for intensive use in professional kitchens.

Supplied with F3/8" flexible hoses and non-return valves.

Bib tap with swivelling, tubular spout L. 200mm.

- 16 lpm full flow rate achieved within 90° turn.

- valve head with reinforced mechanism and ergonomic control.

Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).

Scale-resistant hand spray with shock-resistant tip.

Reinforced, food-grade black flexible hose L. 0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Anti-torsion rotating nut and PVC sheath

Comfort: ergonomic control, swivelling spout

Rapid-fill: full flow rate within the first 90°

Hygiene: PVC flexible, scale-resistant spray

Caracteristici Tehnice

Pre-rinse set with mixer

Ref. 5625
Debit Bib tap 16 lpm; 9 lpm via the hand spray
Conector F3/8"
Finisaj Chrome-plated brass
Drop Height 340 - 580mm
Width to the wall 35 - 162 mm
Inaltime 1105 - 1225 mm
Pre-rinse set with mixer - scheme
