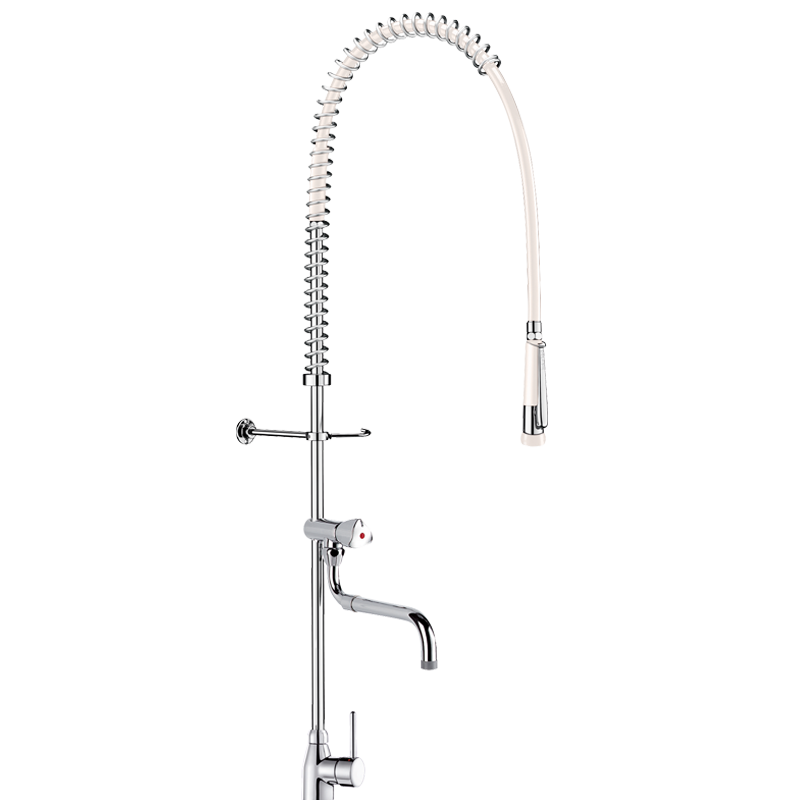

Pre-rinse set with mixer

Ref. 6692
With bib tap and telescopic spout
  • Pre-rinse set with mixer
Pre-rinse set with mixer

DESCRIERE

Pre-rinse set with mixer

Ref. 6692

Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.

Deck-mounted single hole mixer with slimline control lever.

Supplied with F3/8" flexibles and non-return valves.

Bib tap with telescopic, swivelling spout L. 200 - 290mm.

- flow rate 16 lpm at the outlet.

- valve head with control knob.

White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).

Scale-resistant hand spray with shock-resistant tip.

Reinforced, food-grade, white flexible hose L. 0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Rapid fill: full flow rate within 1/2 turn

Telescopic, swivelling rapid-fill spout

Increased resistance: water-free valve heads

Anti-torsion rotating nut and PVC sheath

Caracteristici Tehnice

Pre-rinse set with mixer

Ref. 6692
Debit 16 lpm bib tap; 9 lpm via the hand spray
Conector 3/4"
Finisaj Chrome-plated brass
Drop Height 340 - 580mm
Width to the wall 35 - 162 mm
Inaltime 1105 - 1225 mm

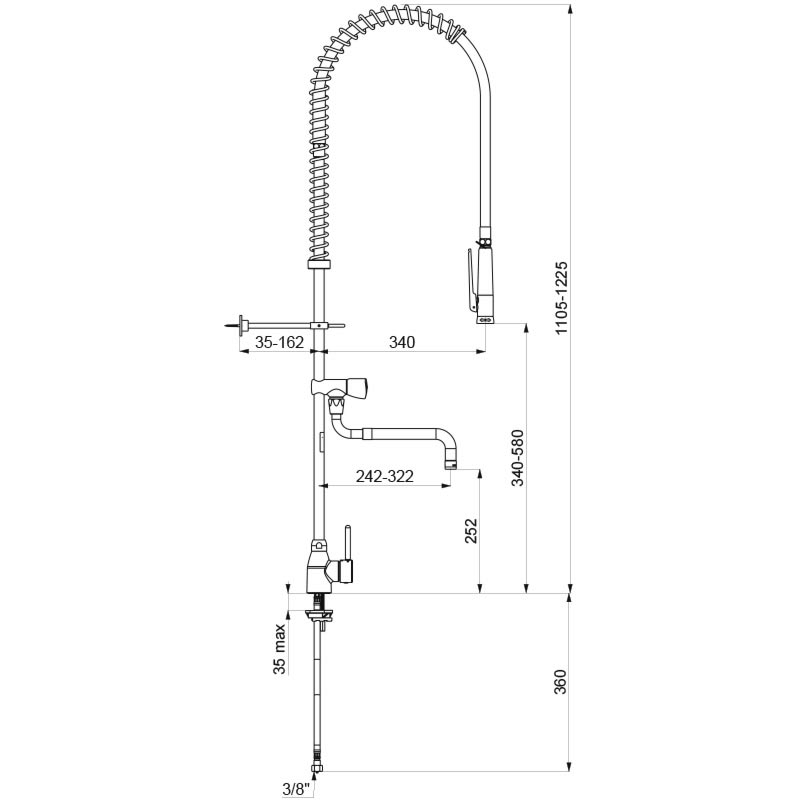

Pre-rinse set with mixer - scheme

DOWNLOADS

Pre-rinse set with mixer

Ref. 6692 To download one or several documents linked to this product, please select the type of file you require :
