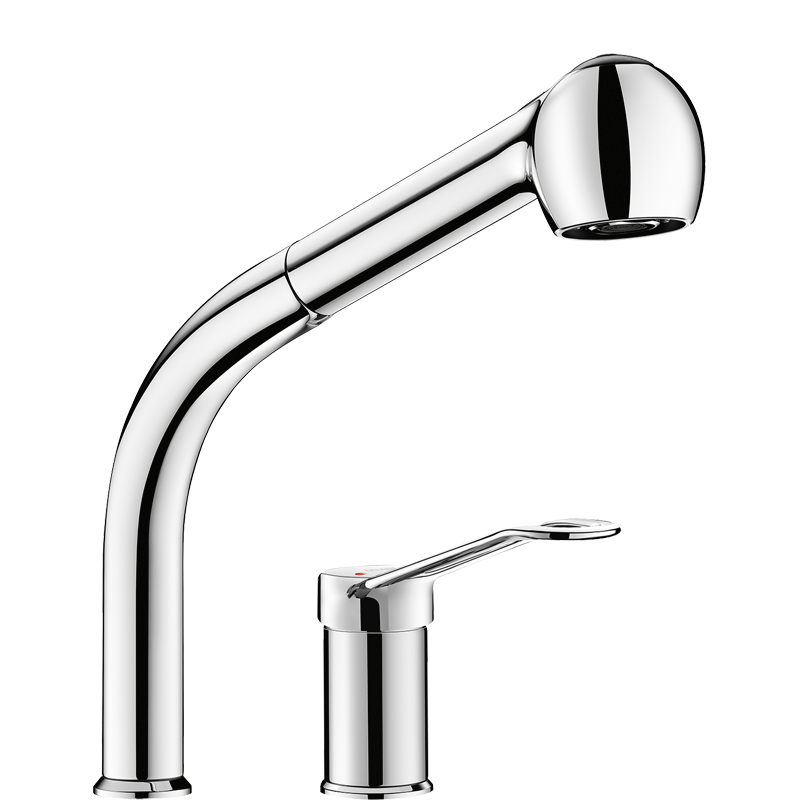

Mechanical mixer set and column with retracting hand spray

Ref. 2599
  • Mechanical mixer set and column with retracting hand spray
  • Mechanical mixer set and column with retracting hand spray
print
phone
Mechanical mixer set and column with retracting hand spray

DESCRIERE

Mechanical mixer set and column with retracting hand spray

Ref. 2599

Mechanical mixer set and column with retracting hand spray.

Retracting hand spray with 2 jet options: flow straightener/rain effect.

Swivelling column H. 250mm L. 220mm.

Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.

Mixer body and column with smooth interior.

Flow rate 12 lpm at 3 bar.

Sculptured control lever.

Mixed water brass outlet L. 160mm.

BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).

Special counterweight.

Chrome-plated brass body.

F⅜" PEX flexibles and reinforced fixing via 2 stainless steel rods.

10-year warranty.

Caracteristici Tehnice

Mechanical mixer set and column with retracting hand spray

Ref. 2599
Debit 12 lpm
Conector F3/8"
Finisaj Chrome-plated brass
Drop Height 250 mm
Spout Length 220 mm
Mechanical mixer set and column with retracting hand spray - scheme

DOWNLOADS

Mechanical mixer set and column with retracting hand spray

Ref. 2599 To download one or several documents linked to this product, please select the type of file you require :
