TEMPOMIX 3 shower mixer
Ref. 794BOX1-794218Recessed time flow shower mixer with soft-touch operation:

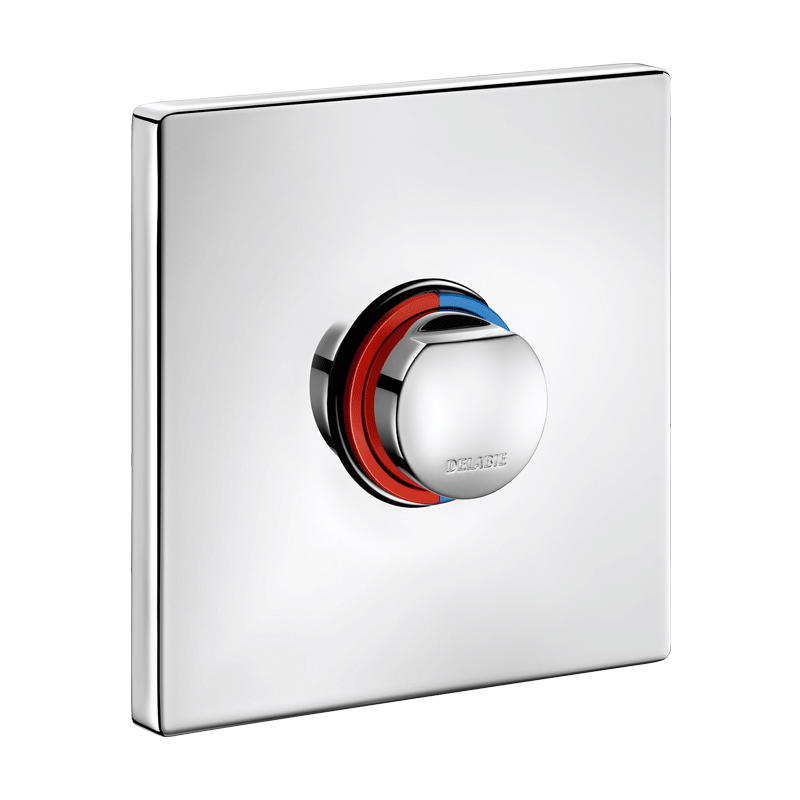

Tamperproof chrome-plated metal wall plate 160 x 160mm.

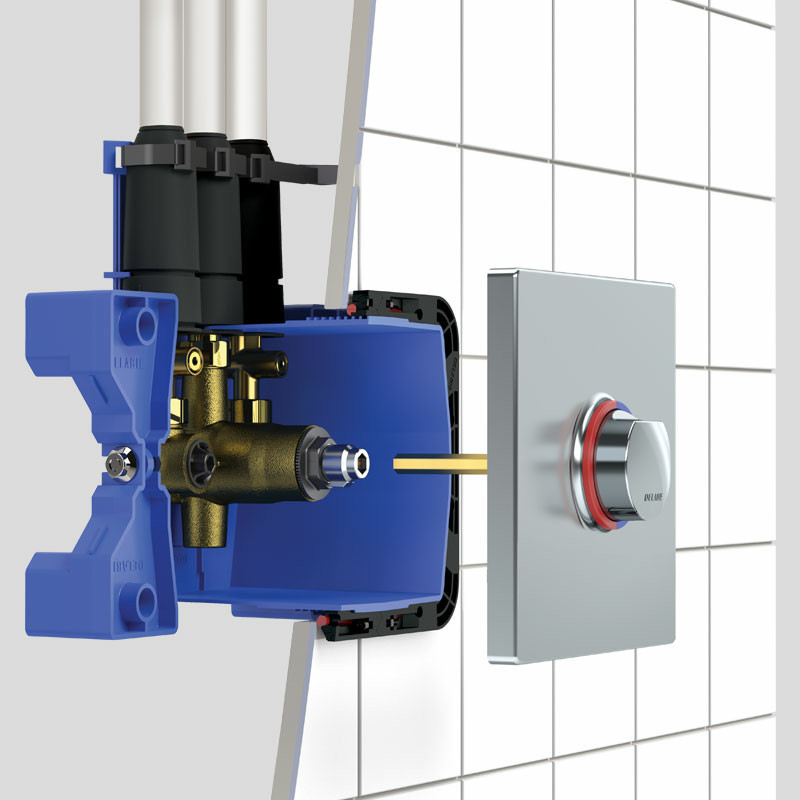

Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.

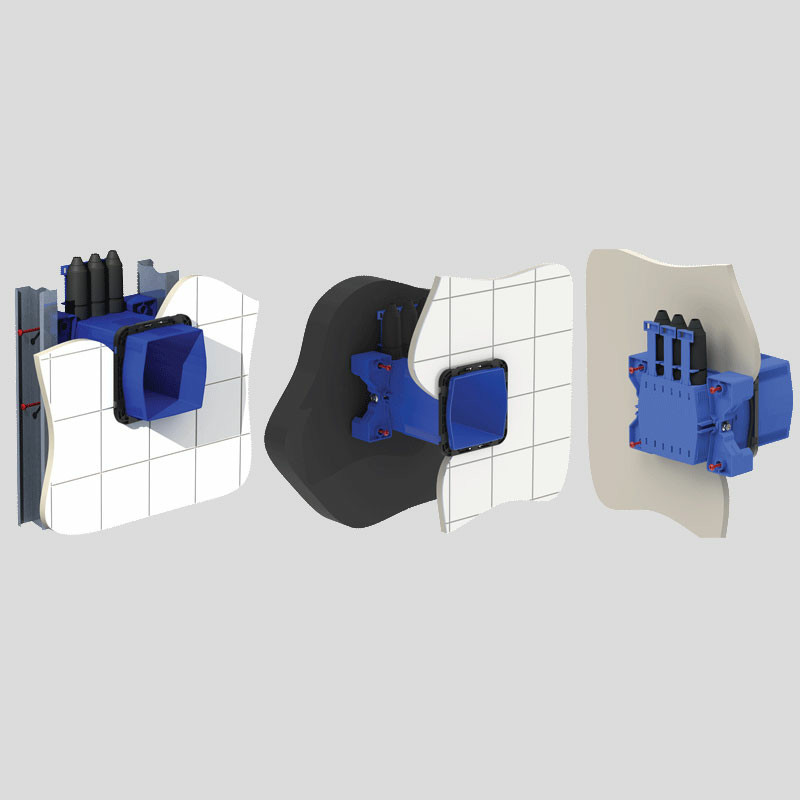

- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 9 lpm at 3 bar.
Suitable for people with reduced mobility.
10-year warranty.
Kit contents:
(794BOX1): recessed housing with cover, valve with temporary caps configured for system flush and connection accessories.
(794218): control plate, valve, collar for waterproofing.
