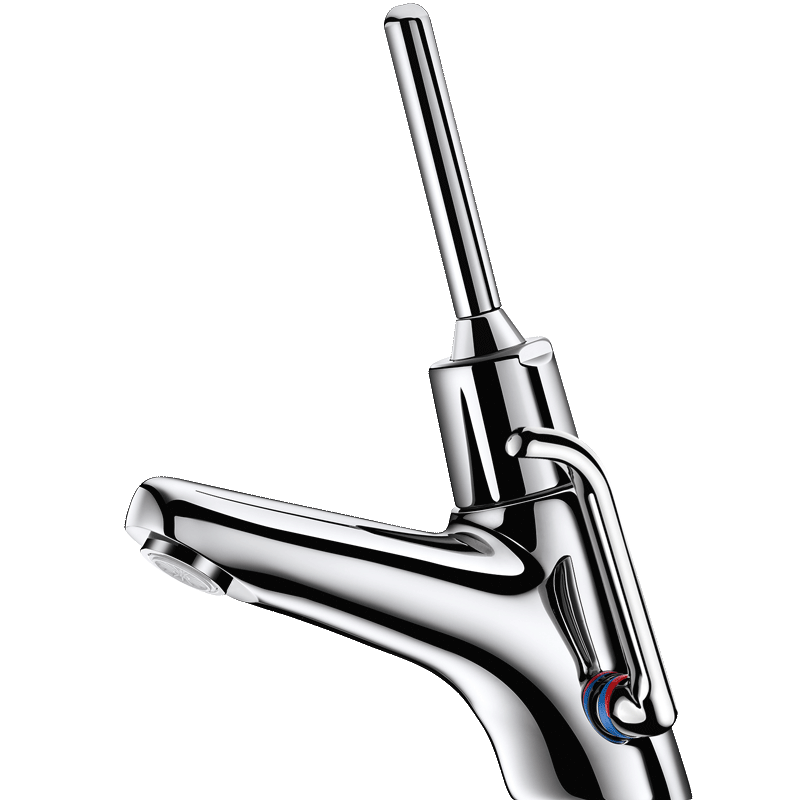

TEMPOMIX 2 time flow mixer

DESCRIERE

TEMPOMIX 2 time flow mixer

Ref. 700500LH

Deck-mounted time flow lever-operated basin mixer:

Time flow ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.

Tamperproof scale-resistant flow straightener.

Chrome-plated solid brass body.

PEX flexibles F3/8" with filters and non-return valves.

Fixing reinforced by 2 stainless steel rods.

Side temperature control with long lever and adjustable maximum temperature limiter.

Lever control (soft-touch operation).

10-year warranty.

ADVANTAGES

Chrome-plated solid brass

Maintenance from front without removing mixer

Soft-touch operation: lever control

85% water savings

Caracteristici Tehnice

TEMPOMIX 2 time flow mixer

Ref. 700500LH
Technology Time flow
Debit 3 lpm
Conector F3/8"
Drop Height 60 mm
Spout Length 115 mm
Installation: Deck-mounted
TEMPOMIX 2 time flow mixer - scheme
