TEMPOMIX 3 time flow mixer

Ref. 794370
Soft-touch operation
  • TEMPOMIX 3 time flow mixer
  • TEMPOMIX 3 time flow mixer
print
phone
TEMPOMIX 3 time flow mixer

DESCRIERE

TEMPOMIX 3 time flow mixer

Ref. 794370

Wall-mounted single control time flow basin mixer:

Soft-touch operation.

Temperature adjustment and operation via the push-button.

Time flow pre-set at ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.

Scale-resistant flow straightener.

Chrome-plated brass body M½".

Fixed spout.

Filters and non-return valves.

Adjustable maximum temperature limiter.

M½" offset connectors for centres from 130 - 170mm.

Suitable for people with reduced mobility.

10-year warranty.

ADVANTAGES

Soft-touch operation

85% water savings

Sleek and slin design

Caracteristici Tehnice

TEMPOMIX 3 time flow mixer

Ref. 794370
Technology Time flow
Debit 3 lpm
Conector M1/2"
Width 150 mm
Installation: Wall-mounted

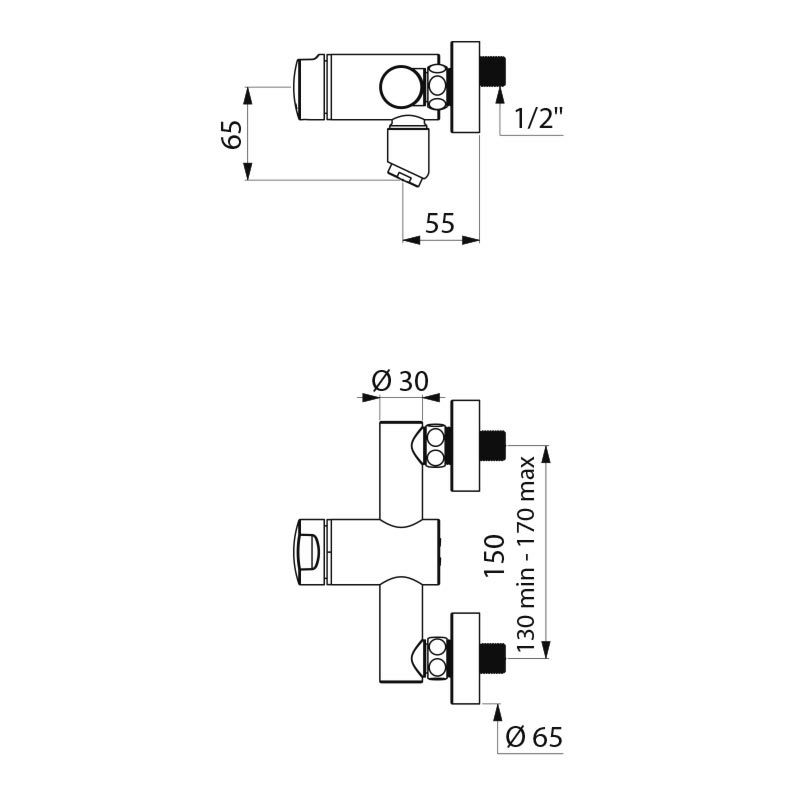

TEMPOMIX 3 time flow mixer - scheme
