TEMPOMIX 3 time flow mixer

DESCRIERE

TEMPOMIX 3 time flow mixer

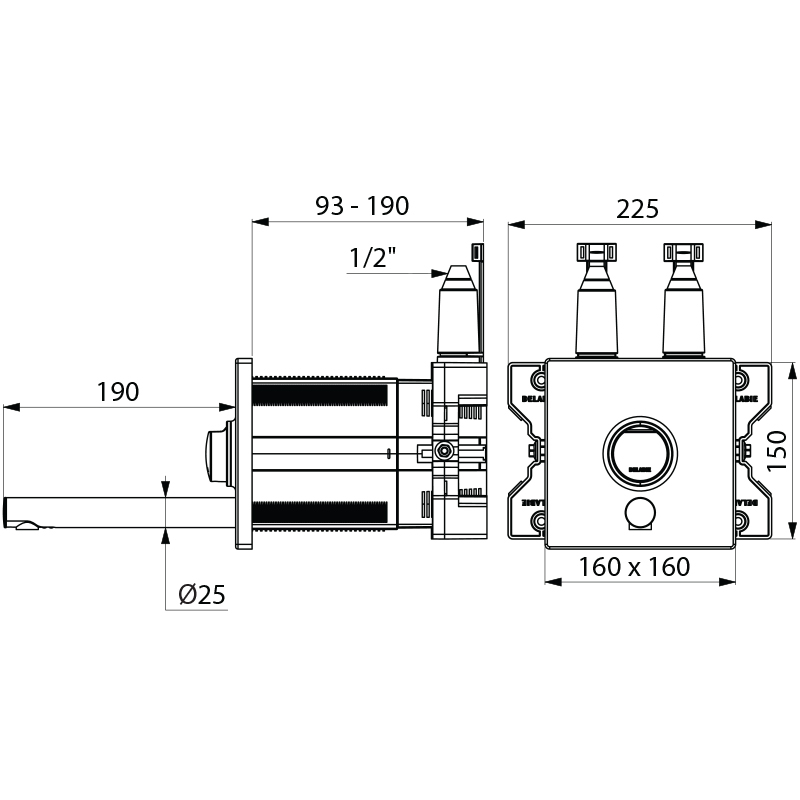

TEMPOMIX 3 recessed time flow basin mixer:

Tamperproof chrome-plated metal plate 160 x 160mm.

Waterproof recessing housing:

- Collar with waterproof seal.

- Hydraulic connection from the outside and maintenance from the front.

- Adjusts to all types of installations (rails, load-bearing walls, panels).

- Compatible with wall finishes 10 - 120mm.

- Suitable for standard or "pipe in pipe" supply.

- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are all integrated and accessible from the front.

- TEMPOMIX 3 single control mixer F½".

- Supplied in 2 kits: secure system flush without sensitive elements.

Temperature control and operation via the push-button.

Maximum temperature limiter (can be adjusted by installer).

Soft-touch operation.

Time flow ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar pressure, can be adjusted 1.4 - 6 lpm.

Scale-resistant flow straightener.

Spout L. 190mm with smooth interior and low water volume (reduces niches where bacteria can develop).

Suitable for people with reduced mobility.

10-year warranty.

Kit contents:

(794BOX3): recessed housing with cover, valve configured for system flush, stopcocks and connection accessories.

(794250): control plate, valve, collar for waterproofing and interior reinforcement fixing.
