DESCRIERE

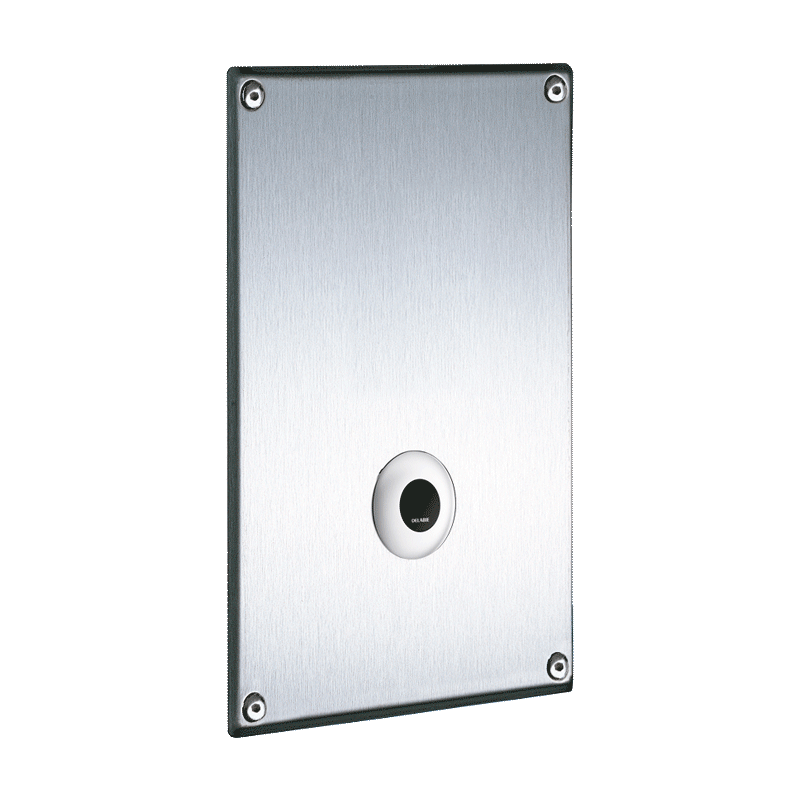

TEMPOMATIC direct flush valve
Ref. 463326Flush system without cistern: directly connected to pipework.
Mains supply with 1" solenoid valve.
230/12V transformer.
IP65 independent electronic unit.
Housing recessed behind a satin finish stainless steel wall plate 320 x 220mm.
Shock-resistant infrared presence detection sensor.
Voluntary activation (when hand is detected ~4cm in front of the sensor) or automatic flush when the user leaves.
Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
Detection distance, flow rate and flush volume can be adjusted.
Stopcock FF1".
Vacuum breaker Ø 32mm.
Connection washer Ø 32/55mm.
Base flow rate: 1 L/sec.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
10-year warranty.
This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproofand any leaks or condensation can drain away (see installation guide).
