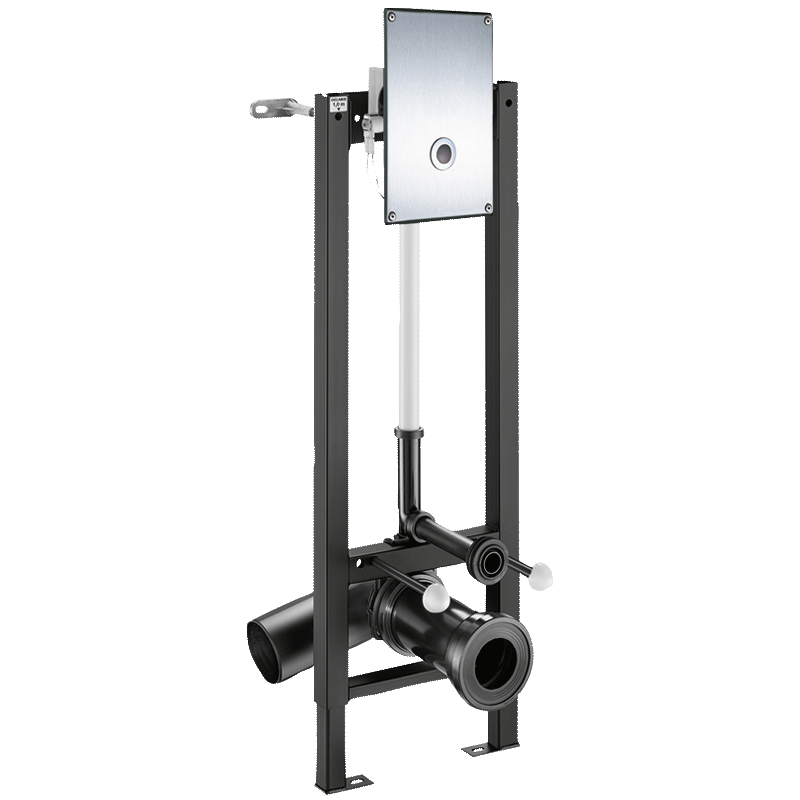

TEMPOFIX 3 wall-mounted frame system with electronic WC valve

DESCRIERE

TEMPOFIX 3 wall-mounted frame system with electronic WC valve

Frame system for wall-hung WCs:

- Black powder-coated steel frame.

- Wall-mounted frame system for fixing to load-bearing walls.

- Frame height can be adjusted from 0 - 200mm (with 1m mark).

- Ø 32mm flush tube with Ø 55mm connection washer.

- PVC soil pipe, Ø 100mm outlet to be glued to waterproof seal, with 2 setting positions.

- Delivered pre-mounted.

- Compatible with solid walls from 26 - 130mm.

- 10-year warranty.

Fitted with TEMPOMATIC F1" electronic direct flush valve:

- Mains supply with 1" solenoid valve.

- 230/12V transformer.

- IP65 independent electronic unit.

- Recessed housing below stainless steel wall plate 320 x 220mm.

- Shock-resistant infrared presence detection sensor.

- Voluntary activation flush (when hand is detected ~4cm in front of the sensor) or automatically (when the user leaves).

- Time flow ~7 seconds can be adjusted 3 - 12 seconds.

- Integrated stopcock and flow rate adjuster.

- Detection distance and flow rate/volume can be adjusted by the installer.

- Suitable for rimless pans without flow rate regulation and suitable for people with reduced mobility

Technical characteristics: see TEMPOMATIC WC ref. 463326.

Kit contents:

(547000): frame system, soil pipe Ø 100mm, flush tube, valve, electronic housing, connection accessories.

(546412): control plate, fixings.
