TEMPOFIX 3 wall-mounted frame system for WCs

DESCRIERE

TEMPOFIX 3 wall-mounted frame system for WCs

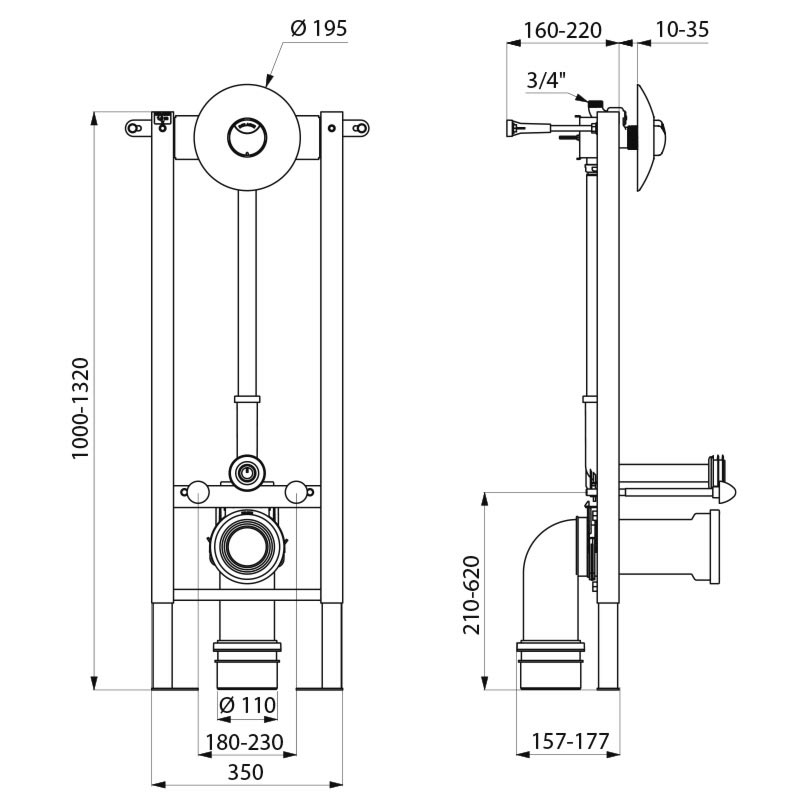

Wall-mounted frame system W. 350mm for wall-hung WCs:

- Black powder-coated steel frame.

- Fixes to load-bearing floors.

- Frame height can be adjusted from 0 - 200mm (with 1m mark).

- Ø 32mm flush tube with Ø 55mm connection washer.

- Ø 110mm HDPE soil pipe with waterproof seal, with 2 settings positions.

- Delivered pre-mounted.

- For walls 10 - 35mm.

- 10-year warranty.

Fitted with TEMPOFLUX 2 time flow direct flush valve:

- Ø 195mm chrome-plated metal wall plate with concealed fixings.

- 3L/6L dual flush (can be adjusted to 2L/4L).

- Soft-touch operation.

- Vacuum breaker.

- Stopcock and flow rate/volume adjuster.

- Solid brass body and shock-resistant, scale-resistant mechanism.

- In-line inlet M¾".

- Complies with European standard EN class II.

Technical features: see TEMPOFLUX 2 ref. 762902.

Kit contents:

(578300DE): frame system, soil pipe Ø 110mm, flush tube, valve with cover, vacuum breaker, connection accessories.

(578222): control plate, fixings.
