TEMPOFIX 3 wall-mounted frame system with time flow WC valve

DESCRIERE

TEMPOFIX 3 wall-mounted frame system with time flow WC valve

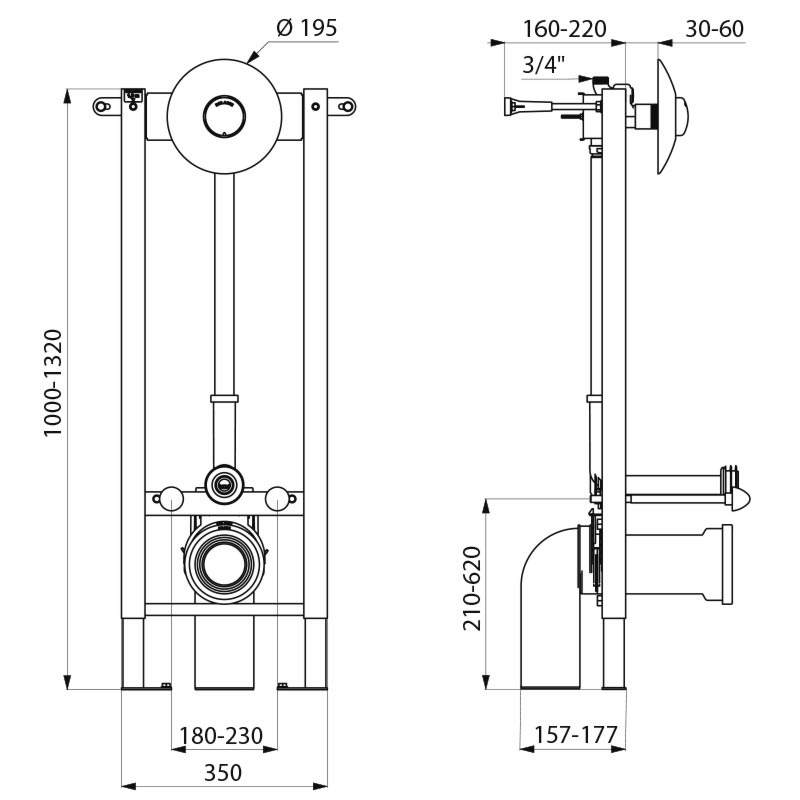

Wall-mounted frame system for wall-hung WC:

- Black powder-coated steel frame.

- Fixes to load-bearing floors.

- Frame height can be adjusted from 0 - 200mm (with 1m mark).

- Ø 32mm flush tube with Ø 55mm connection washer.

- Ø 100mm soil pipe and PVC collar with waterproof seal, with 2 settings positions.

- Delivered pre-mounted.

- For semi-thick walls 30 - 60mm.

- 10-year warranty.

Fitted with TEMPOFLUX 2 direct flush time flow valve:

- Ø 195mm chrome-plated wall plate with concealed fixings.

- 6L single flush.

- Soft-touch operation.

- Vacuum breaker.

- Stopcock and flow rate/volume adjuster.

- Solid brass body and shock-resistant, scale-resistant mechanism.

- In-line inlet M¾".

- Acoustic level complies with European standard EN 12541 class II.

Technical features: see TEMPOFLUX 2 ref. 762902.

Kit contents:

(578400): frame system, soil pipe Ø 100mm, flush tube, valve with cover, vacuum breaker, connection accessories.

(578212): control plate, fixings.
