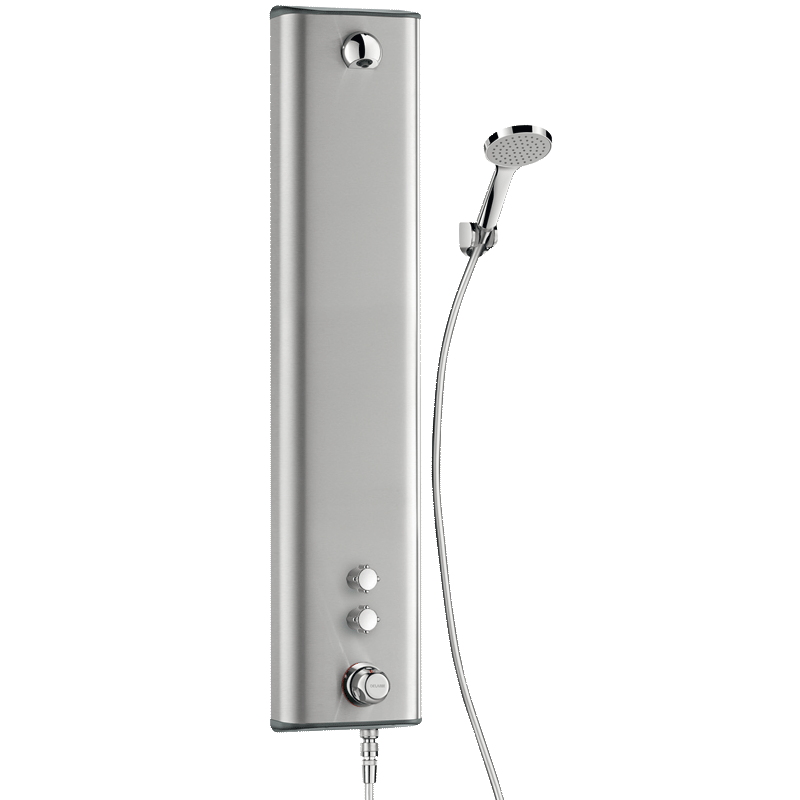

SECURITHERM shower panel

Ref. 792354CF
Mechanical thermostatic dual control, comfort 10 lpm
  • SECURITHERM shower panel
SECURITHERM shower panel

DESCRIERE

SECURITHERM shower panel

Ref. 792354CF

Dual control thermostatic shower panel:

Large model stainless steel shower panel for wall mounted, exposed installation.

Concealed inlet via flexibles M1/2".

SECURITHERM thermostatic mixer.

Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.

Anti-scalding safety: automatic shut-off if cold or hot water supply fails.

Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation at 10 lpm at 3 bar.

Handset with removable flexible via rapid push-fit STOP connector, wall support supplied.

Non-time flow valves to control the ROUND shower head and the handset.

Thermal shocks are possible.

Stopcocks.

Concealed fixings.

Filters and non-return valves.

10-year warranty.

ADVANTAGES

Thermostatic temperature regulation

Immediate shut-off if cold water fails

Fixed shower head or handset

Stainless steel sheath, brass controls

Caracteristici Tehnice

SECURITHERM shower panel

Ref. 792354CF
Technology Non-time flow
Debit 10 lpm
Conector M1/2"
Finisaj Stainless steel
Temperature limiter Thermostatic
Width 250 mm
Depth 100 mm
Water supply Concealed
Inaltime 1220 mm
SECURITHERM shower panel - scheme

DOWNLOADS

SECURITHERM shower panel

Ref. 792354CF To download one or several documents linked to this product, please select the type of file you require :
