SECURITHERM shower panel

Ref. H963915
Sequential thermostatic mixer
  • SECURITHERM shower panel
print
phone
SECURITHERM shower panel

DESCRIERE

SECURITHERM shower panel

Ref. H963915

SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:

SECURITHERM sequential thermostatic mixer (non time flow).

Temperature control from cold water up to 39°C.

Maximum temperature limiter set at 39°C, can be adjusted.

Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.

Thermal shocks are possible.

Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.

Hygiene control lever L. 100mm.

Top inlets with M1/2" stopcocks.

With copper tails.

Concealed fixings and filters.

10-year warranty.

ADVANTAGES

SECURITHERM: Optimum anti-scalding safety

Maximum hygiene: no non-return valves

Thermostatic: total temperature stability

Sequential: open and closing on cold water

Caracteristici Tehnice

SECURITHERM shower panel

Ref. H963915
Technology SECURITHERM single control thermostatic mixer
Debit 6 lpm
Conector M1/2'' Ø 15mm
Finisaj Aluminium
Supply Top inlets via inline stopcocks M1/2"
Temperature limiter 39 °C
Width 210 mm
Water supply Concealed
Inaltime 1050 mm

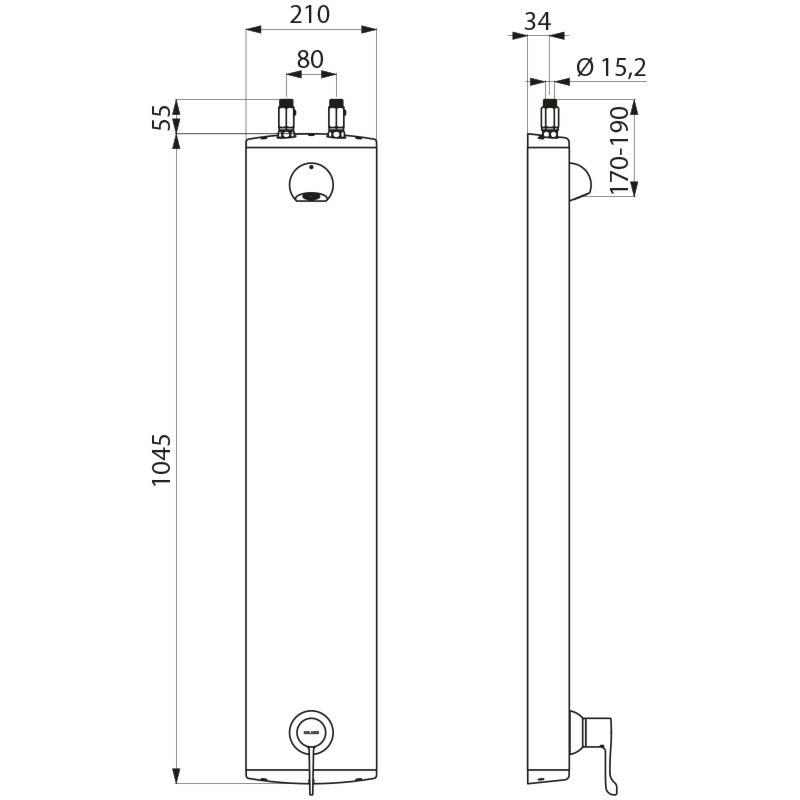

SECURITHERM shower panel - scheme
