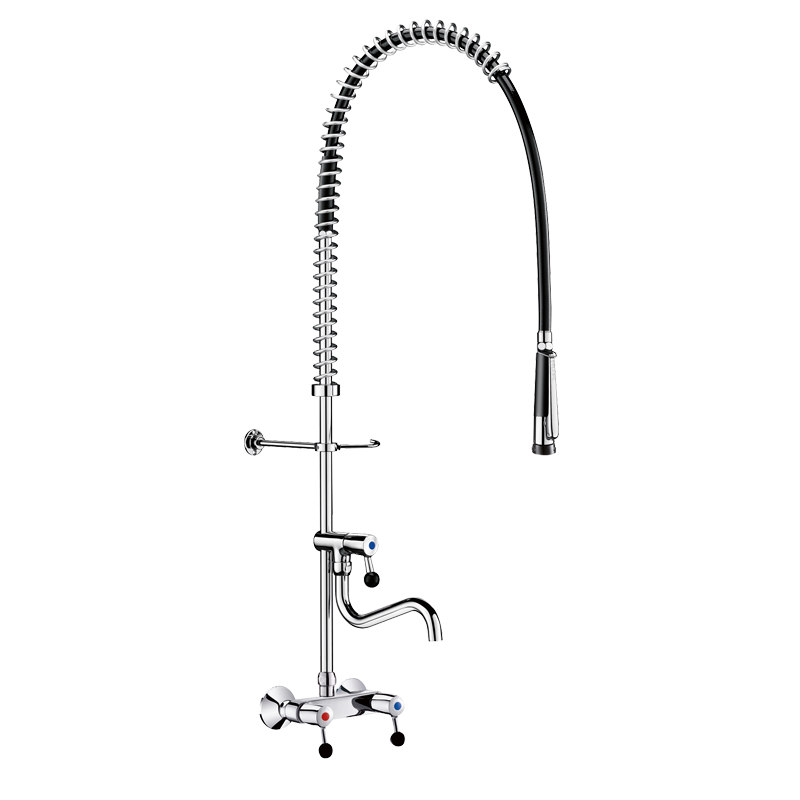

Wall-mounted pre-rinse set with mixer

Ref. 5634
With bib tap
  • Wall-mounted pre-rinse set with mixer
Wall-mounted pre-rinse set with mixer

DESCRIERE

Wall-mounted pre-rinse set with mixer

Ref. 5634

Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.

Wall-mounted mixer, F3/4" with adjustable centres with:

- valve heads with reinforced mechanisms with ergonomic control levers.

- M1/2" M3/4" offset connectors.

- non-return valves integrated in the mixer.

Bib tap with swivelling, tubular spout L. 200mm.

- 25 lpm full flow rate achieved within 90°.

- valve head with reinforced mechanism with ergonomic control lever.

Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).

Scale-resistant hand spray with shock-resistant tip.

Black, reinforced, food-grade flexible hose L.0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Rapid fill: full flow within the first 90°

Anti-torsion rotating nut and PVC sheath

Comfort: ergonomic controls, swivelling spout

Hygiene: PVC flexible, scale-resistant spray

Caracteristici Tehnice

Wall-mounted pre-rinse set with mixer

Ref. 5634
Debit 25 lpm bib tap; 9 lpm via the hand spray
Conector 3/4"
Finisaj Chrome-plated brass
Drop Height 205 - 345 mm
Width to the wall 35 - 162 mm
Inaltime 860 - 930 mm
Wall-mounted pre-rinse set with mixer - scheme
