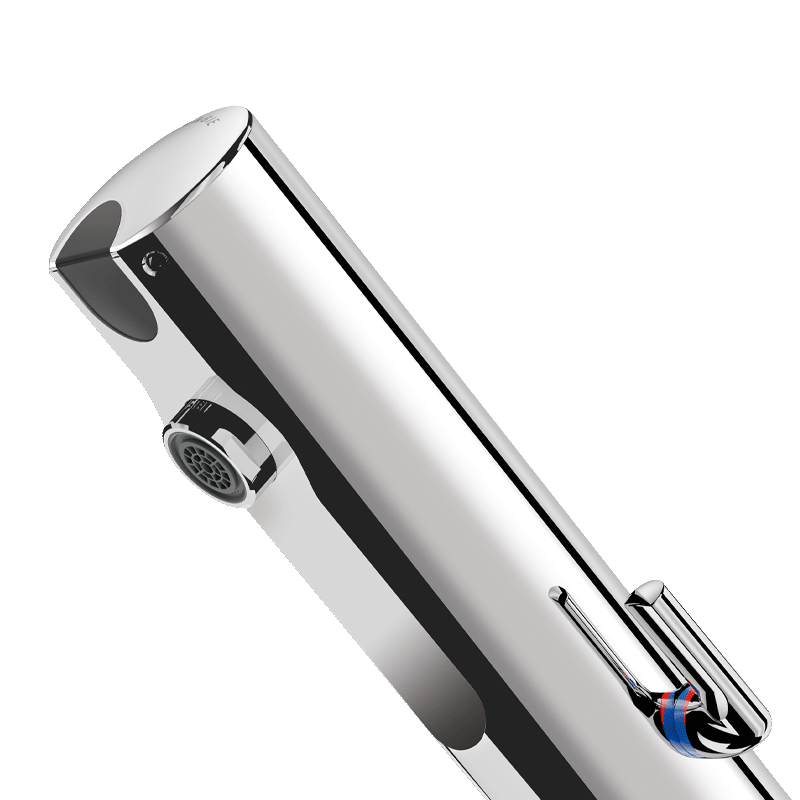

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000615
Integrated batteries, stopcocks Ø 15mm
  • TEMPOMATIC MIX 4 electronic mixer
  • TEMPOMATIC MIX 4 electronic mixer
  • TEMPOMATIC MIX 4 electronic mixer
  • TEMPOMATIC MIX 4 electronic mixer
TEMPOMATIC MIX 4 electronic mixer

DESCRIERE

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000615

Deck-mounted electronic basin mixer:

Battery-operated with integrated 123 6V Lithium batteries.

Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.

Scale-resistant flow straightener.

Duty flush (~60 seconds every 24 hours after last use).

Active, infrared presence detection, sensor at the end of the spout optimises detection.

Chrome-plated solid brass body.

Cap fixed in place by two concealed screws.

PEX flexible Ø 15mm for compression fittings with stopcocks, filters and non-return valves.

Fixing reinforced by 2 stainless steel rods.

Anti-blocking security.

Side temperature control with adjustable maximum temperature limiter.

Suitable for people with reduced mobility.

10-year warranty.

*Add CR to the end of the reference (49000615CR) to order with copper tails.

ADVANTAGES

Total hygiene: no manual contact

90% water savings

Batteries integrated in mixer body

Duty flush limits bacterial proliferation

Caracteristici Tehnice

TEMPOMATIC MIX 4 electronic mixer

Ref. 49000615
Technology Electronic
Debit 3 lpm
Conector M1/2'' Ø 15mm
Supply 6V batteries
Drop Height 75 mm
Spout Length 110 mm
Installation: Deck-mounted
TEMPOMATIC MIX 4 electronic mixer - scheme
