TEMPOFLUX urinal valve

DESCRIERE

TEMPOFLUX urinal valve

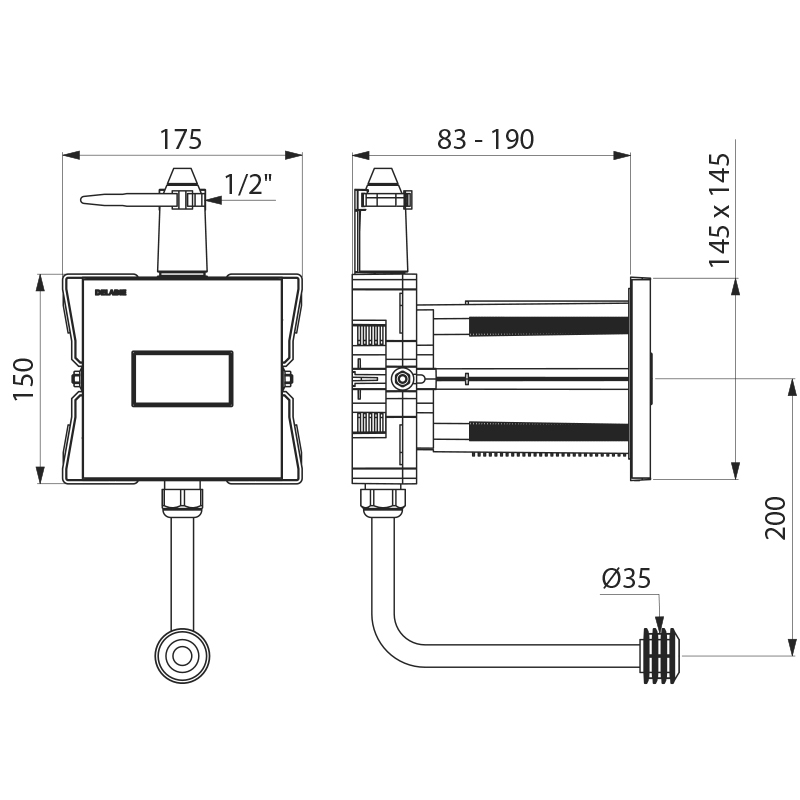

Recessed time flow urinal valve:

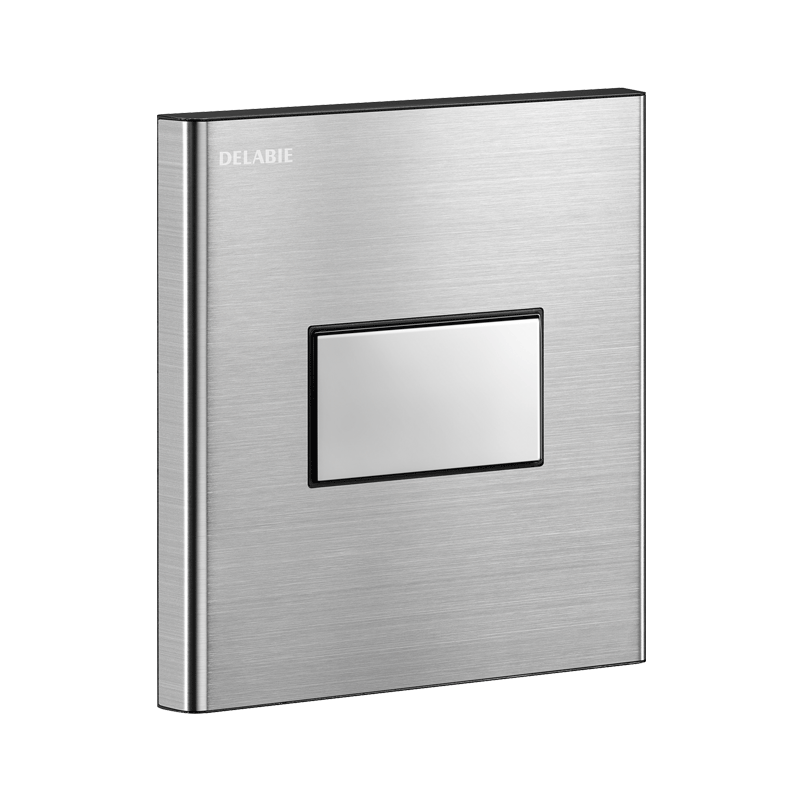

Satin finish stainless steel wall plate 145 x 145mm.

Chrome-plated metal button.

Waterproof recessing housing:

- Collar with waterproof seal.

- Hydraulic connection from the outside and maintenance from the front.

- Adjusts to all types of installation (rails, solid walls, panels).

- Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 83mm).

- Suitable for standard or "pipe-in-pipe" supply.

- Stopcock and flow rate adjustment, filter and cartridge are all integrated and accessible from the front.

- TEMPOFLUX F½" urinal valve is compatible with sea water and grey water.

- Supplied in 2 kits: secure system flush without sensitive elements.

Soft-touch operation.

Time flow pre-set at ~7 seconds.

Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.

Complies with European standard EN 12541 (class II acoustic level).

Connection with Ø 35mm connection washer (for standard urinals) or ½" brass connection (for urinals supplied by flexible).

For use with neck tube ref. 752430 or 757430.

Suitable for people with reduced mobility.

10-year warranty.

Kit contents:

(778BOX): recessed housing with cover, collar for waterproofing, valve, time flow cartridge, filter and stopcock.

(778707): control plate, collar for waterproofing, valve, time flow cartridge, filter and stopcock.
