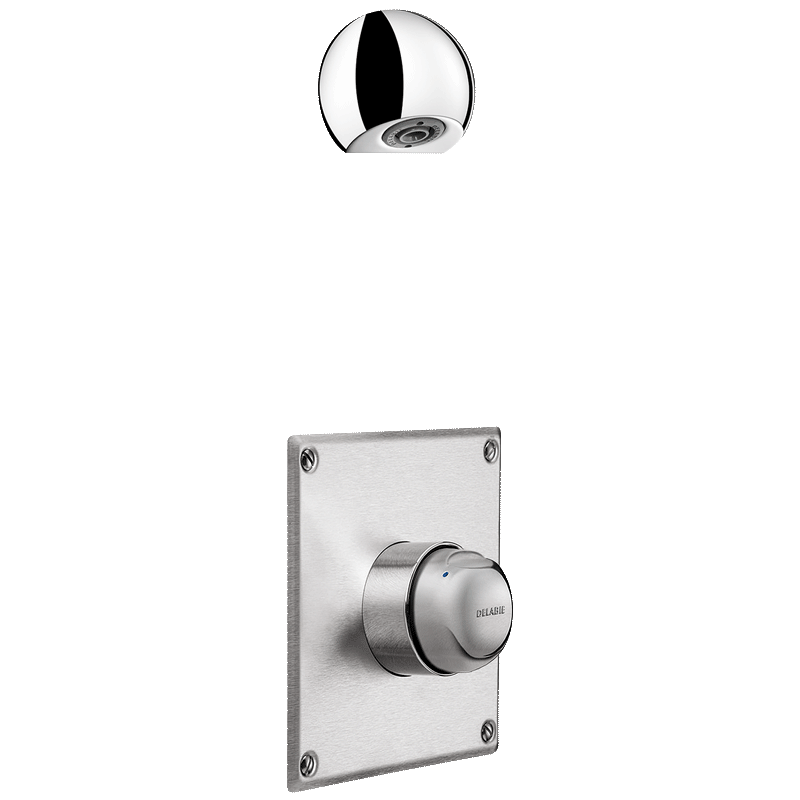

TEMPOMIX shower kit
Ref. 790709Recessed time flow shower kit:
Stainless steel wall plate 160 x 160mm.
Standard recessing housing.

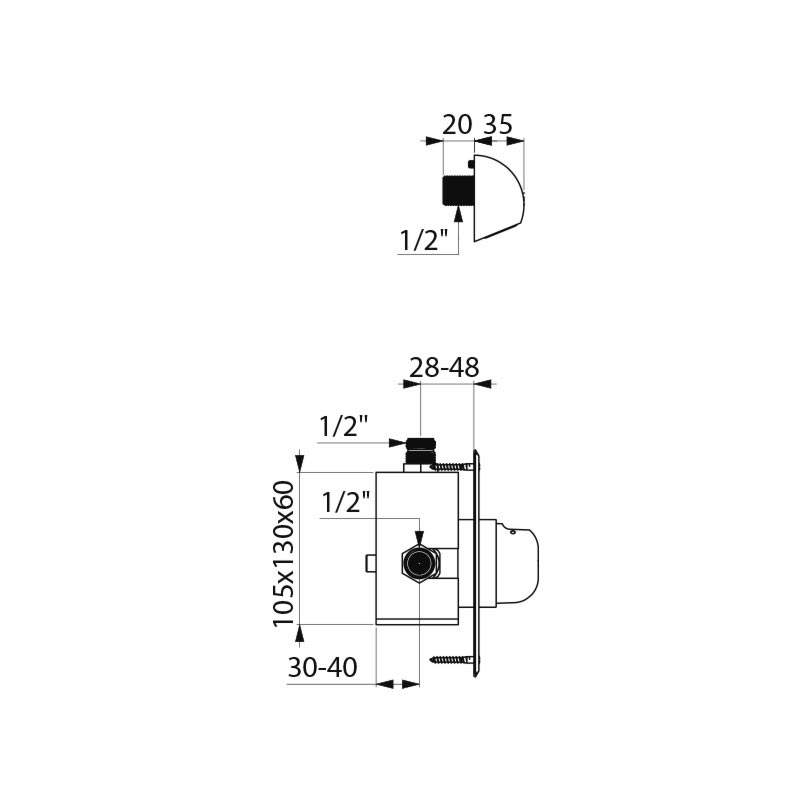

Recessing depth can be adjusted from 28 to 48mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M1/2" connections for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
