TEMPOCHASSE direct flush valve

Ref. 760110
Direct flush WC valve
  • TEMPOCHASSE direct flush valve
  • TEMPOCHASSE direct flush valve
print
phone
TEMPOCHASSE direct flush valve

DESCRIERE

TEMPOCHASSE direct flush valve

Ref. 760110

Flush system without cistern: directly connected to pipework.

For walls ≤ 200mm.

Time flow ~7 seconds.

Vacuum breaker.

Inline stopcock and flow rate/volume adjuster in rough cast brass.

Chrome-plated metal button and body.

Shock-resistant mechanism.

Inline inlet F1".

Connection washer Ø 32/55mm.

Threaded rod can be cut to size.

Base flow rate: 1 l/sec.

10-year warranty.

[Formerly ref: 760150]

ADVANTAGES

No cistern: no stagnant water

Cross wall installation

Powerful flush is immediately available

Direct flush reduces the risk of leaks

Caracteristici Tehnice

TEMPOCHASSE direct flush valve

Ref. 760110
Conector 1"
Lungime 200 mm

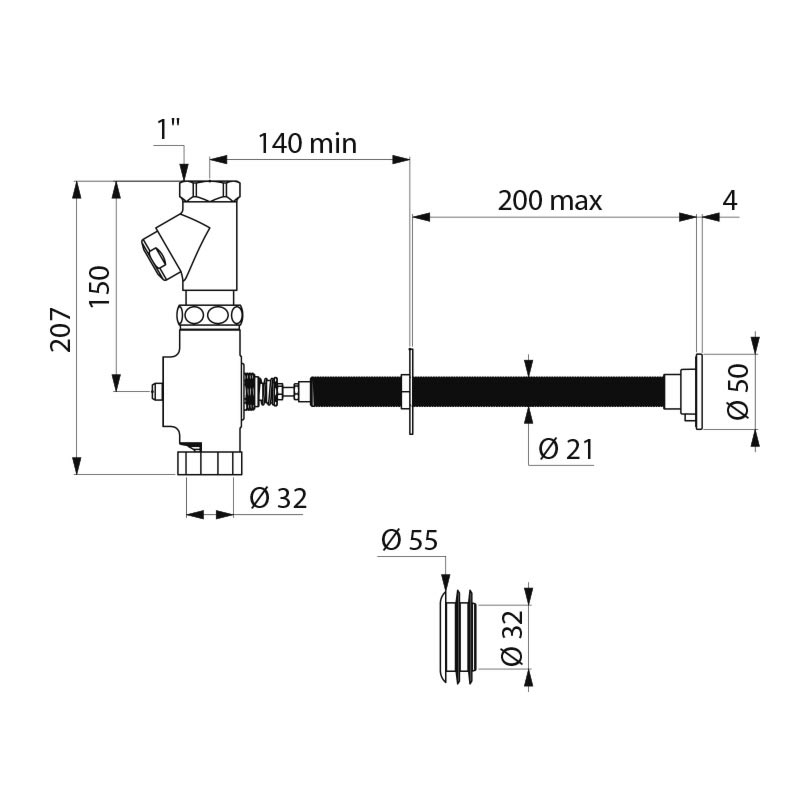

TEMPOCHASSE direct flush valve - scheme
