TEMPOFLUX 1 direct flush valve

Ref. 761627
Direct flush WC valve
  • TEMPOFLUX 1 direct flush valve
print
phone
TEMPOFLUX 1 direct flush valve

DESCRIERE

TEMPOFLUX 1 direct flush valve

Ref. 761627

Recessed time flow valve for direct flush:

Satin finish stainless steel plate 220 x 170mm.

Multipurpose recessing housing.

Soft-touch operation.

Time flow ~7 seconds.

Vacuum breaker.

Integrated stopcock and flow/volume rate adjuster.

Solid brass body and chrome-plated push-button.

In-line inlet M3/4".

Outlet connection for PVC tube Ø 26/32mm.

Base flow rate: 1 L/sec.

Suitable for people with reduced mobility.

10-year warranty.

This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproof and any leaks or condensation can drain away (see installation guide).

ADVANTAGES

No cistern: no stagnant water

Wall recessed installation

Powerful flush and immediately available

Direct flush reduces the risk of leaks

Caracteristici Tehnice

TEMPOFLUX 1 direct flush valve

Ref. 761627
Technology Time flow
Width 170 mm
Heith 220 mm
Inaltime 220 mm
Lungime 170 mm

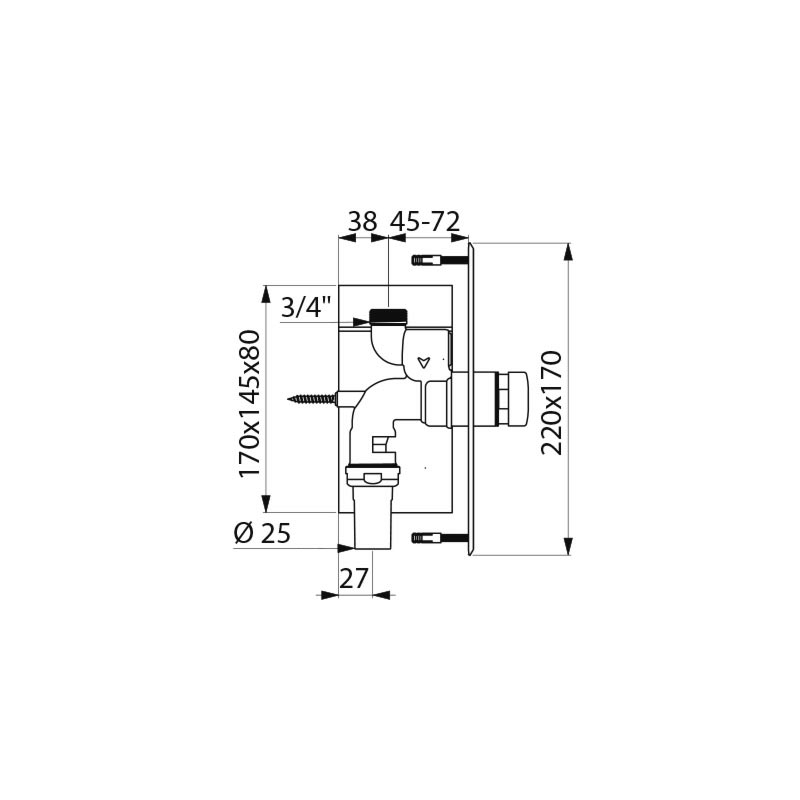

TEMPOFLUX 1 direct flush valve - scheme

DOWNLOADS

TEMPOFLUX 1 direct flush valve

Ref. 761627 To download one or several documents linked to this product, please select the type of file you require :
