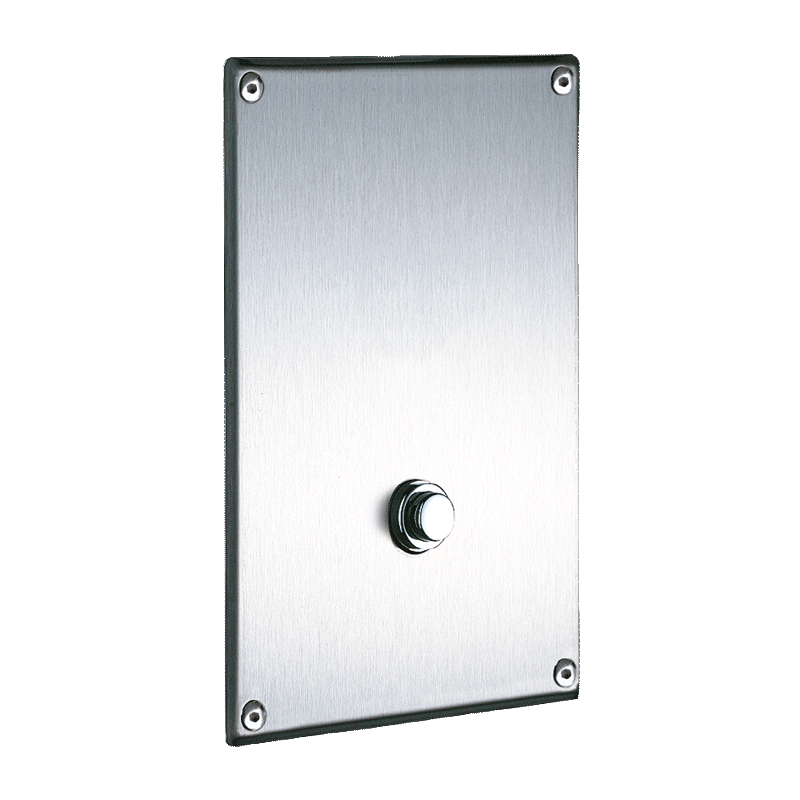

TEMPOCHASSE direct flush valve

Ref. 760220
Direct flush WC valve
  • TEMPOCHASSE direct flush valve
print
phone
TEMPOCHASSE direct flush valve

DESCRIERE

TEMPOCHASSE direct flush valve

Ref. 760220

Flush system without cistern: directly connected to pipework.

Satin finish stainless steel plate 320 x 220mm.

Time flow ~7 seconds.

Vacuum breaker.

In-line raw brass stopcock and flow rate / flush volume adjuster.

Solid brass body and chrome-plated metal push-button.

Shockproof mechanism.

In-line inlet F1".

Connection washer Ø 32/55mm.

Base flow rate: 1.2 L/sec.

10-year warranty.

This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproof and any leaks or condensation can drain away (see installation guide).

ADVANTAGES

No cistern: no stagnant water

Wall recessed installation

Powerful flush and immediately available

Direct flush reduces the risk of leaks

Caracteristici Tehnice

TEMPOCHASSE direct flush valve

Ref. 760220
Technology Time flow
Conector 1"
Heith 320 mm
Inaltime 320 mm
Lungime 220 mm
TEMPOCHASSE direct flush valve - scheme

DOWNLOADS

TEMPOCHASSE direct flush valve

Ref. 760220 To download one or several documents linked to this product, please select the type of file you require :
