DESCRIPTION

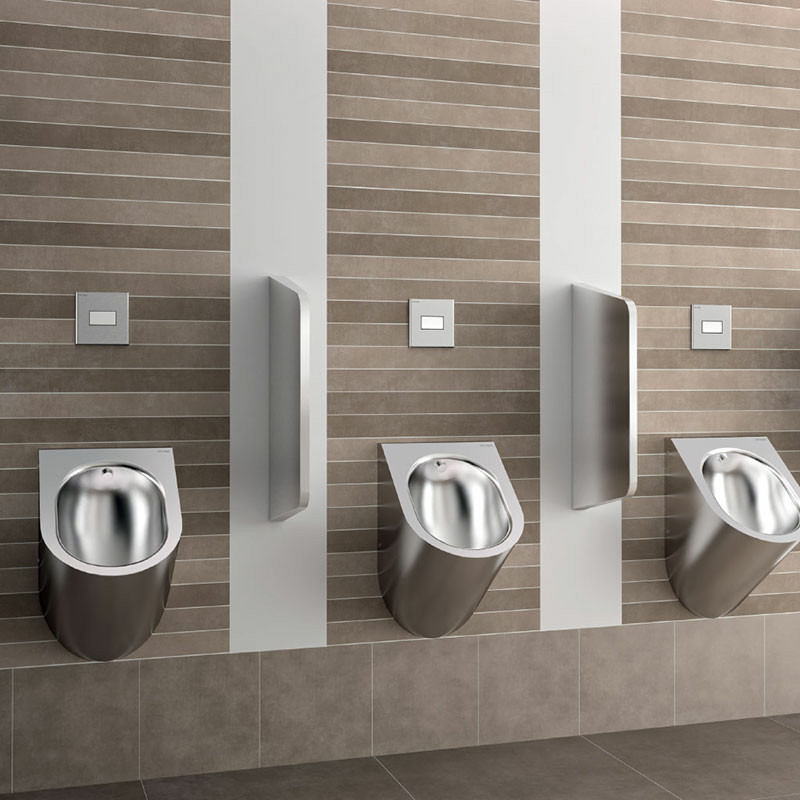

TEMPOFIX 3 frame system for urinals
Ref. 543006D-778707Frame-system with time flow urinal valve:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls, anchoring bolts supplied.
Adjustable bracket 95- 280mm.
Frame height can be adjusted from 0 - 200mm.
Ø 50mm soil pipe with waterproof seal.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 - 120mm.
10-year warranty.
Fitted with a TEMPOFLUX F½" time flow urinal valve
Satin finish stainless steel wall plate 145 x 145mm.
Chrome-plated metal button.
Waterproof recessing housing.
Soft-touch operation.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted up to 0.3 L/sec.
Complies with European standard EN 12541 (class II acoustic level).
½" connection for urinals with supply via flexible.
Technical features: see TEMPOFLUX urinal ref. 778BOX-778707.
Kit contents:
(543006D): frame system, tube with brass union ½" for flexible supply, soil pipe sleeve Ø 50mm, recessed housing with cover, valve configured for system flush, connection accessories.
(778707): control plate, collar for waterproofing, valve, time flow cartridge, filter and stopcock.
