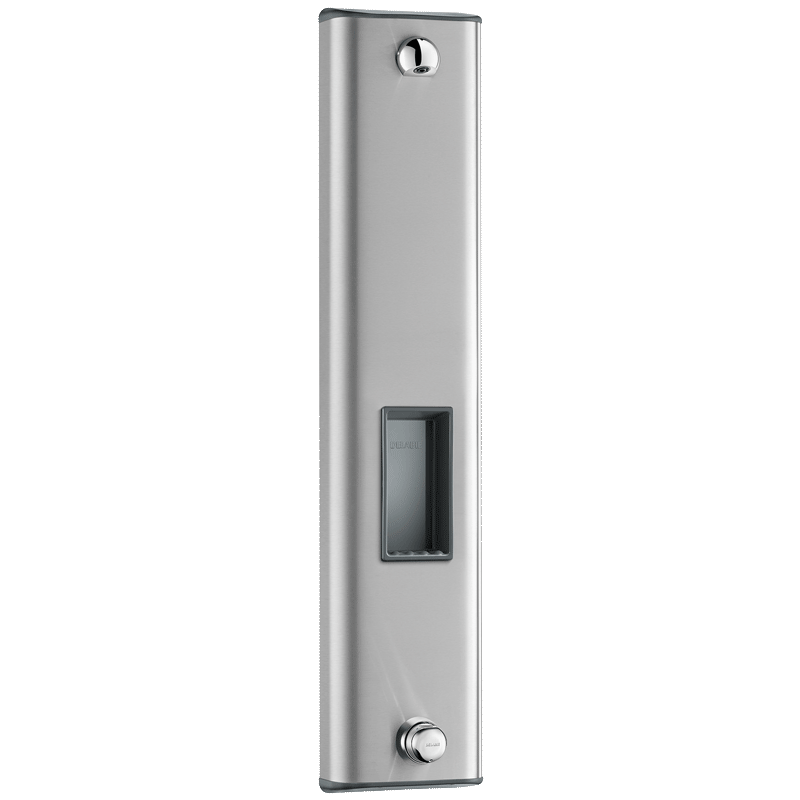

TEMPOMIX shower panel

Ref. 790204
Time flow single control
  • TEMPOMIX shower panel
print
phone
TEMPOMIX shower panel

DESCRIPTION

TEMPOMIX shower panel

Ref. 790204

Time flow shower panel with fixed shower head:

Large model stainless steel panel for wall-mounted, exposed installation.

With top inlet via in-line stopcocks M½".

TEMPOMIX mixer with adjustable maximum temperature limiter.

Soft-touch operation.

Time flow ~30 seconds.

Flow rate 6 lpm at 3 bar.

Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.

Integrated soap dish.

Concealed fixings.

Filters and non-return valves.

Stopcocks.

10-year warranty.

ADVANTAGES

80% water savings

Temperature control on the mixer

Stainless steel panel, brass controls

TECHNICAL CHARACTERISTICS

TEMPOMIX shower panel

Ref. 790204
Technology Time flow
Flow rate 6 lpm
Connector M1/2"
Finish Stainless steel
Width 250 mm
Depth 100 mm
Water supply In-line
Height 1220 mm

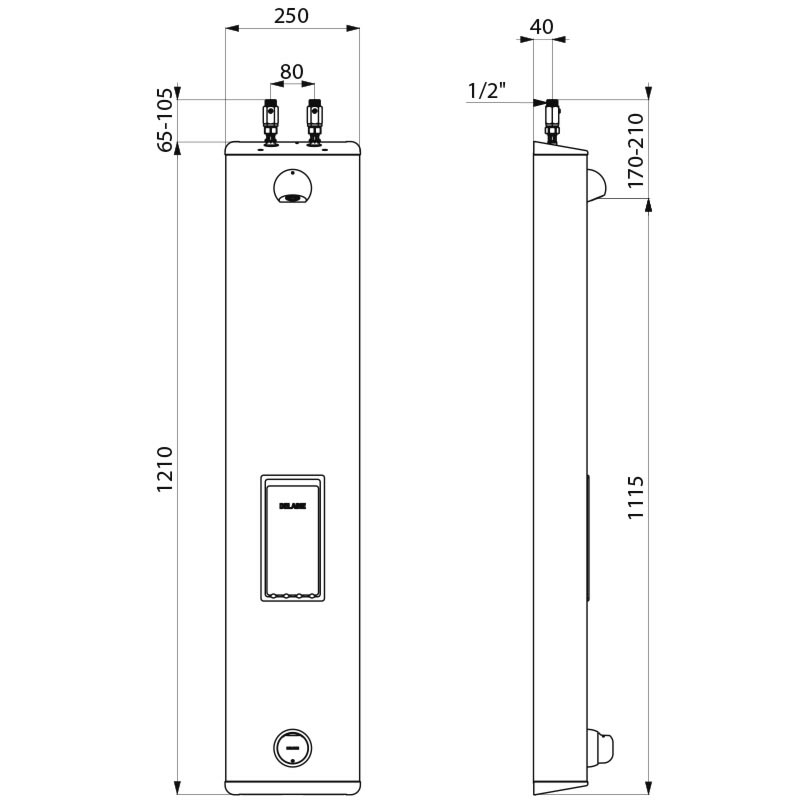

TEMPOMIX shower panel - scheme

DOWNLOADS

TEMPOMIX shower panel

Ref. 790204 To download one or several documents linked to this product, please select the type of file you require :
