TEMPOMIX 2 time flow mixer

Ref. 700001LH
(AB) Anti-blocking model, stopcocks
  • TEMPOMIX 2 time flow mixer
  • TEMPOMIX 2 time flow mixer
print
phone
TEMPOMIX 2 time flow mixer

DESCRIPTION

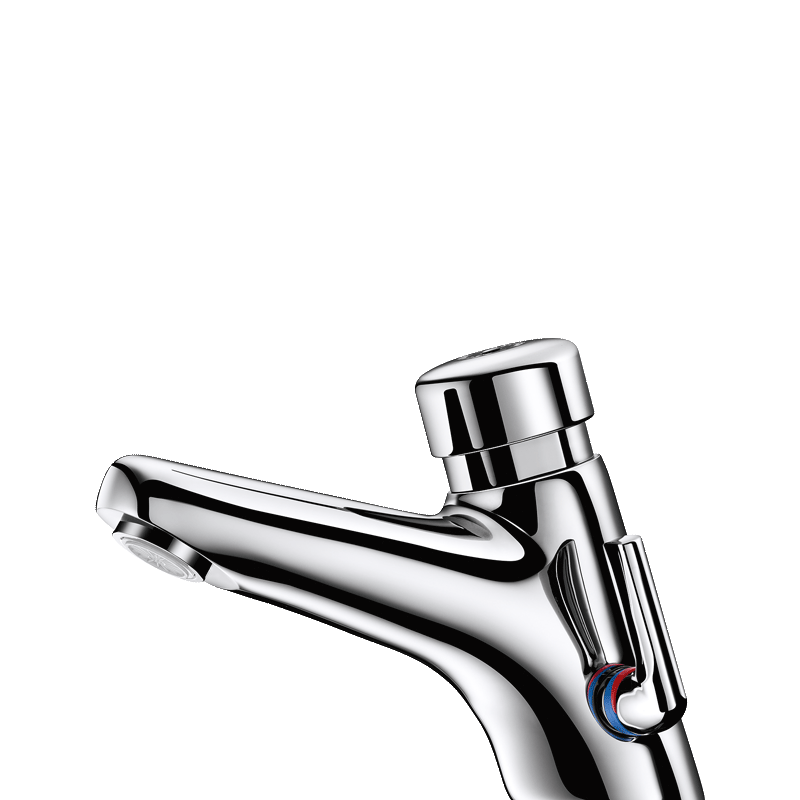

TEMPOMIX 2 time flow mixer

Ref. 700001LH

Deck-mounted time flow basin mixer:

Time flow ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.

Scale-resistant flow straightener.

Chrome-plated solid brass body.

PEX flexibles F3/8" with stopcocks, filters and non-return valves.

Fixing reinforced by 2 stainless steel rods.

Side temperature control with long lever and adjustable maximumtemperature limiter.

AB anti-blocking system: water will flow only when the push-button is released.

10-year warranty.

ADVANTAGES

Chrome-plated solid brass

Anti-blocking system

85% water savings

Maintenance from front with no need for removal

TECHNICAL CHARACTERISTICS

TEMPOMIX 2 time flow mixer

Ref. 700001LH
Technology Time flow
Flow rate 3 lpm
Connector F3/8"
Drop Height 60 mm
Spout Length 115 mm
Installation: Deck-mounted
TEMPOMIX 2 time flow mixer - scheme

DOWNLOADS

TEMPOMIX 2 time flow mixer

Ref. 700001LH To download one or several documents linked to this product, please select the type of file you require :
