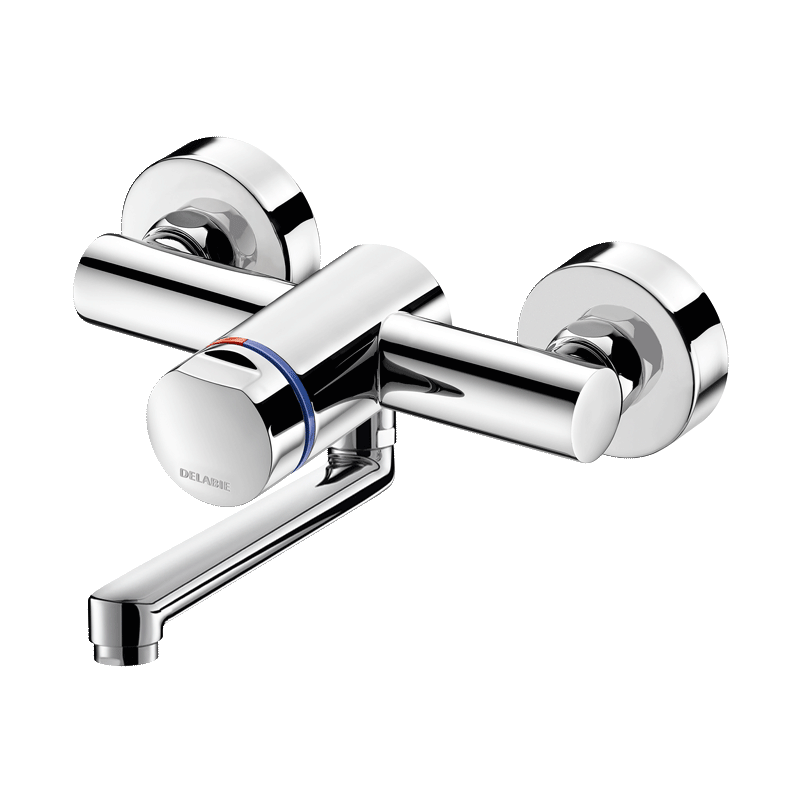

TEMPOMIX 3 time flow mixer

Ref. 794360
Soft-touch operation
  • TEMPOMIX 3 time flow mixer
  • TEMPOMIX 3 time flow mixer
TEMPOMIX 3 time flow mixer

DESCRIPTION

TEMPOMIX 3 time flow mixer

Ref. 794360

Wall-mounted single control time flow basin mixer:

Soft-touch operation.

Temperature control and operation via the push-button.

Time flow pre-set at ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.

Scale-resistant flow straightener.

Chrome-plated solid brass body M1/2".

Fixed spout L.150mm.

Filters and non-return valves.

Adjustable maximum temperature limiter.

M1/2" offset connectors for centres from 130 - 170mm.

Suitable for people with reduced mobility.

10-year warranty.

ADVANTAGES

Soft-touch operation

85% water savings

Sleek and slin design

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 794360
Technology Time flow
Flow rate 3 lpm
Connector M1/2"
Spout Length 150 mm
Width 150 mm
Installation: Wall-mounted
Length 200 mm

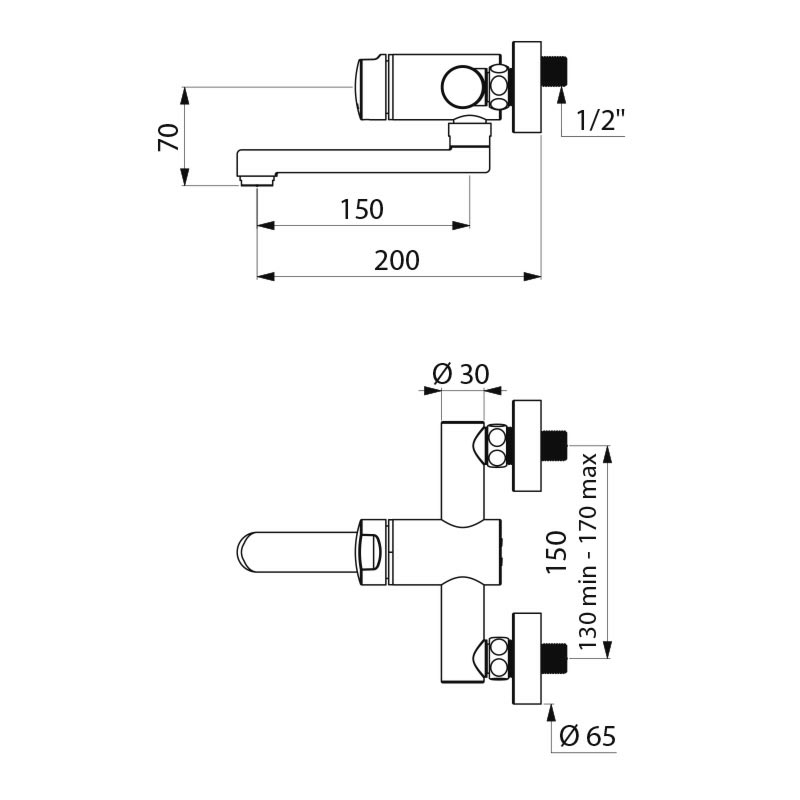

TEMPOMIX 3 time flow mixer - scheme

DOWNLOADS

TEMPOMIX 3 time flow mixer

Ref. 794360 To download one or several documents linked to this product, please select the type of file you require :
