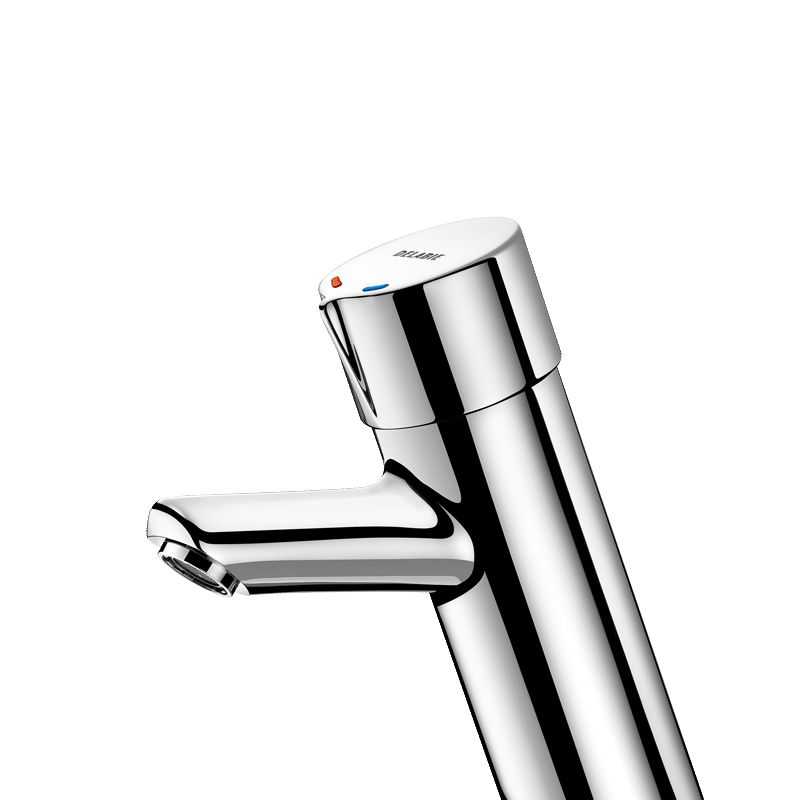

TEMPOMIX time flow mixer

Ref. 795000
With stopcocks
  • TEMPOMIX time flow mixer
  • TEMPOMIX time flow mixer
TEMPOMIX time flow mixer

DESCRIPTION

TEMPOMIX time flow mixer

Ref. 795000

Deck-mounted single control time flow basin mixer:

Soft-touch operation.

Temperature control and operation via the push-button.

Time flow ~7 seconds.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.

Scale-resistant flow straightener.

Chrome-plated solid brass body.

PEX flexibles with stopcocks F3/8", filters and non-return valves.

Fixing reinforced by 2 stainless steel rods.

Adjustable maximum temperature limiter.

Ergonomic chrome-plated metal push-button.

10-year warranty.

ADVANTAGES

Soft-touch operation

85% water savings

Chrome-plated solid brass, reinforced fixings

Temperature selection

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 795000
Technology Time flow
Flow rate 3 lpm
Connector F3/8"
Drop Height 60 mm
Spout Length 110 mm
Installation: Deck-mounted

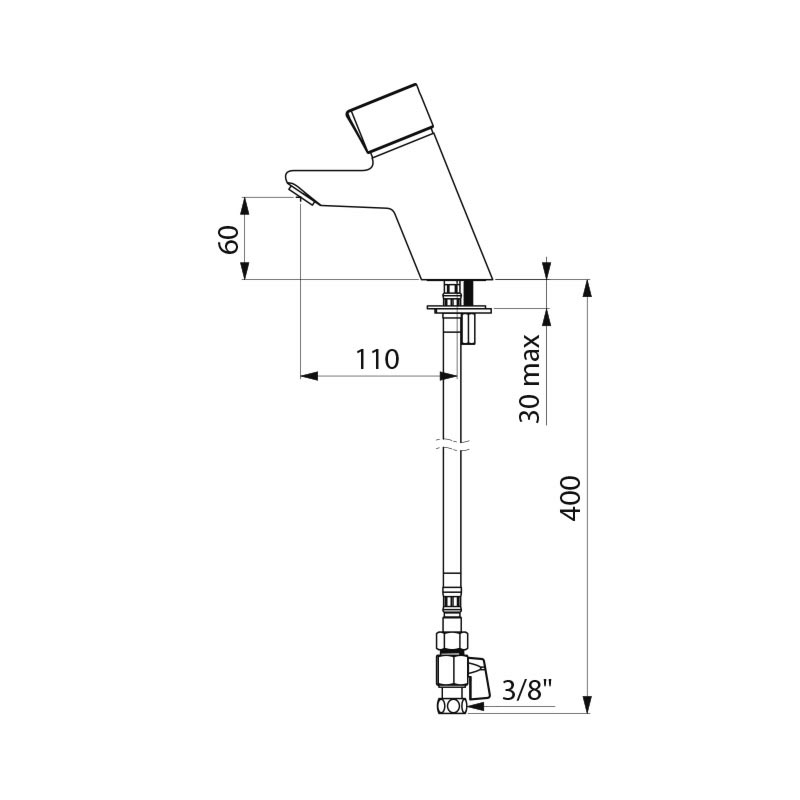

TEMPOMIX time flow mixer - scheme

DOWNLOADS

TEMPOMIX time flow mixer

Ref. 795000 To download one or several documents linked to this product, please select the type of file you require :
