DESCRIPTION

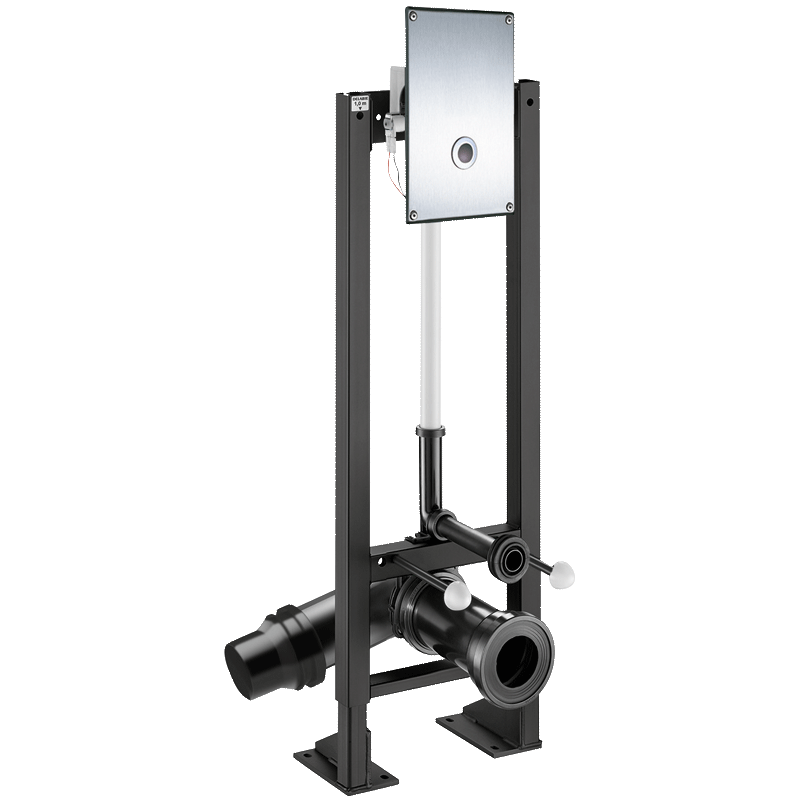

TEMPOFIX 3 self-supporting frame system for WCs
Ref. 547005BE-546412Self-supporting frame system W. 350mm for wall-hung electronic WCs:
- Black powder-coated steel frame.
- Fixes to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 90mm HDPE outlet with waterproof seal, with 2 settings positions.
- Delivered pre-mounted.
- For dry walls 26 - 130mm.
- 10-year warranty.
Fitted with TEMPOMATIC F1" electronic direct flush valve:
- Mains supply with 1" solenoid valve.
- Stainless steel plate 320 x 220mm.
- IP65 independent electronic unit.
- Shock-resistant infrared presence detection sensor.
- Voluntary activation when hand is detected ~10cm from the sensor or automatically when the user leaves.
- Time flow ~7 seconds can be adjusted 3 - 12 seconds.
- 230/12V transformer.
- Stopcock and volume/flow rate adjuster.
- Detection distance can be adjusted by the installer.
Technical characteristics: see TEMPOMATIC WC ref. 463326.
Kit contents:
(547005BE): frame system, soil pipe Ø 90mm, flush tube, valve, electronic housing, connection accessories.
(546412): control plate, fixings.
