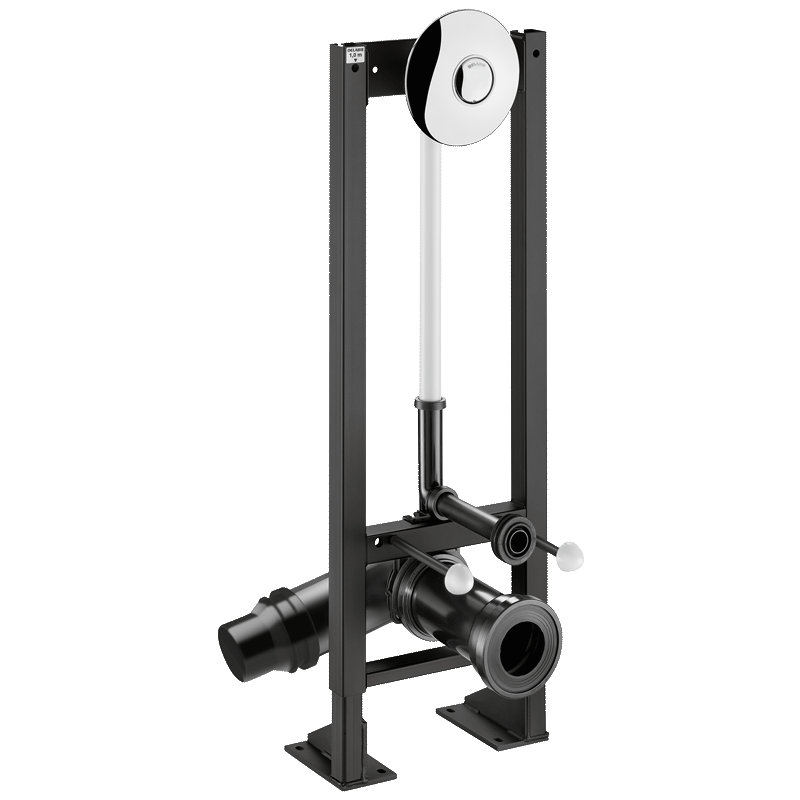

TEMPOFIX 3 self-supporting frame system for WCs

DESCRIPTION

TEMPOFIX 3 self-supporting frame system for WCs

Self-supporting frame system W. 350mm for wall-hung WC:

- Black powder-coated steel frame.

- Fixes to load-bearing floors.

- Frame height can be adjusted from 0 - 200mm (with 1m mark).

- Ø 32mm flush tube with Ø 55mm connection washer.

- ABS soil pipe with Ø 90mm HDPE sleeves and waterproof seal, with 2 settings positions.

- Delivered pre-mounted.

- For dry walls 10 - 35mm.

- 10-year warranty.

Fitted with TEMPOFLUX 2 direct flush time flow valve:

- Ø 195mm chrome-plated wall plate with concealed fixings.

- 6L single flush (can be adjusted to 9L).

- Soft-touch operation.

- Vacuum breaker.

- Stopcock and flow rate/volume adjuster.

- Solid brass body and shock-resistant, scale-resistant mechanism.

- In-line inlet M¾".

- Acoustic level complies with European standard EN class II.

Technical characteristics: see TEMPOFLUX 2 ref. 762901.

Kit contents:

(578305BE): frame system, soil pipe Ø 90mm, flush tube, valve with cover, vacuum breaker, connection accessories.

(578212): control plate, fixings.
