TEMPOFIX 3 self-supporting frame system with time flow WC valve

DESCRIPTION

TEMPOFIX 3 self-supporting frame system with time flow WC valve

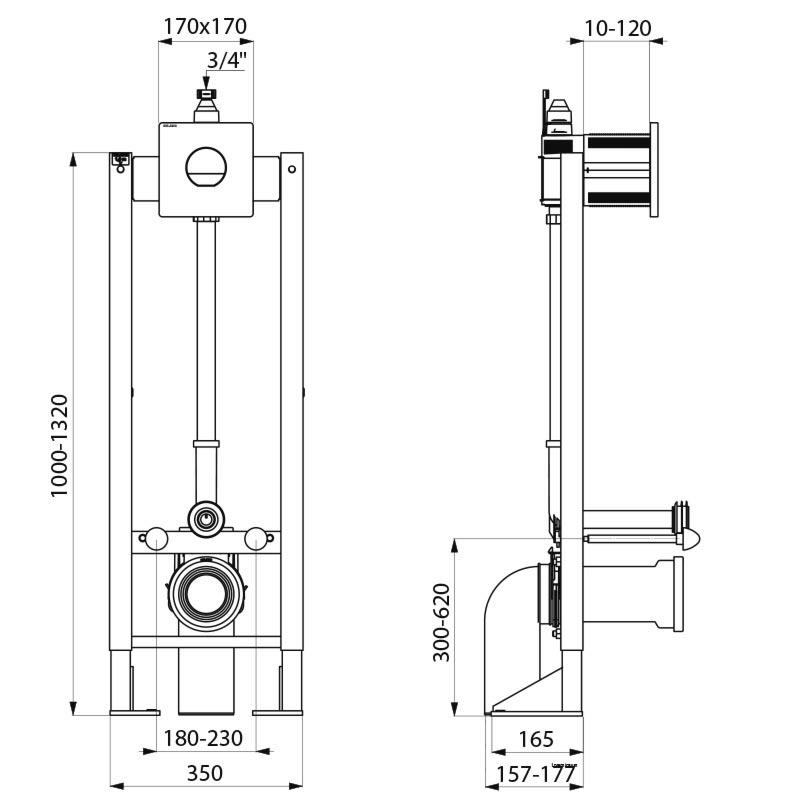

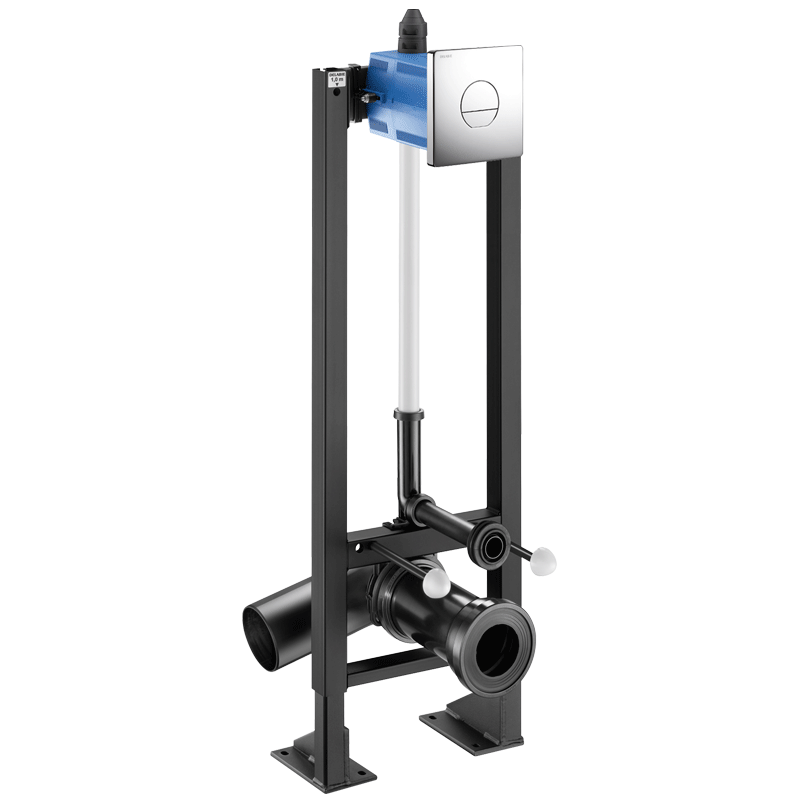

Self-supporting frame system for wall-hung WC pans:

- Black powder-coated steel frame.

- Fixes to load-bearing floors.

- Frame height can be adjusted from 0 - 200mm (with 1m mark).

- Ø 32mm flush tube with Ø 55mm connection washer.

- Ø 100mm PVC soil pipe to glue on to waterproof seal, with 2 setting positions.

- Delivered pre-mounted.

- Compatible with solid walls from 10 - 120 mm.

- 10-year warranty.

Fitted with a TEMPOFLUX 3 F¾'' time flow direct flush valve:

- Chrome-plated metal wall plate 170 x 170mm.

- Waterproof recessing housing.

- Soft-touch operation.

- Dual flush 3L/6L, can be adjusted to 2L/4L.

- AB anti-blocking system.

- Backflow prevention device inside the housing.

- Integrated stopcock and flow rate adjuster.

- Acoustic level complies with NF EN 12541 class II.

- Compatible with sea water and grey water.

For technical features see TEMPOFLUX 3 ref. 763BOX-763000.

Kit contents:

(564065): frame system, soil pipe Ø 100mm, flush tube, recessed housing with cover, valve for system flush, vacuum breaker, stopcock, connection accessories.

(763040): control plate, collar for waterproofing, time flow cartridge.
