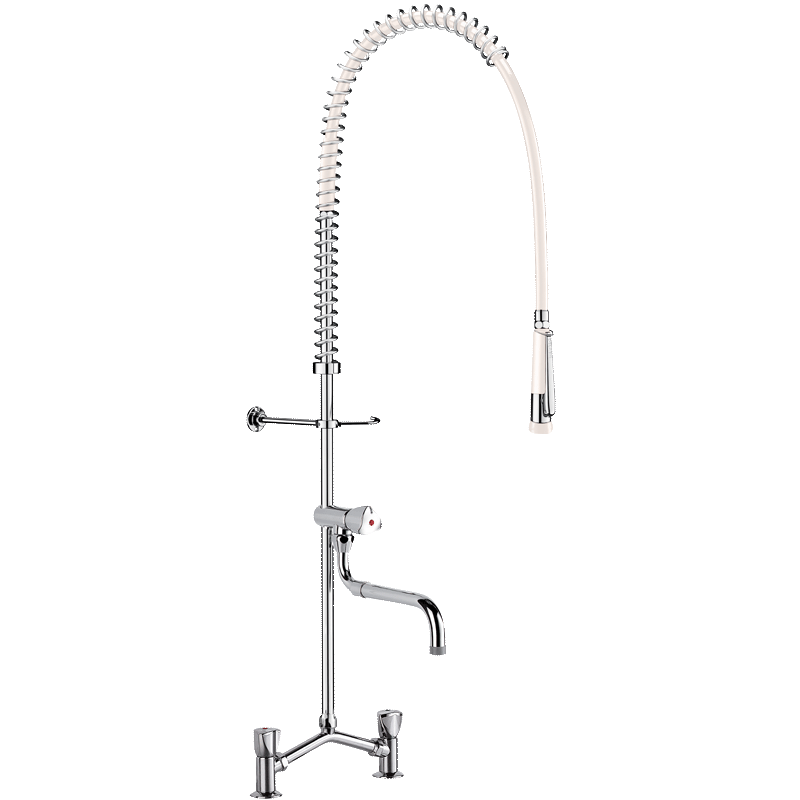

Twin hole pre-rinse set with mixer

Ref. G6532
With bib tap and swivelling telescopic spout
  • Twin hole pre-rinse set with mixer
Twin hole pre-rinse set with mixer

DESCRIPTION

Twin hole pre-rinse set with mixer

Ref. G6532

Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.

Deck-mounted twin hole mixer with adjustable centres from 100 - 240mm with:

- valve heads with control knobs.

- offset inlet connections with M1/2" tails.

Bib tap with telescopic, swivelling spout L. 200 - 290mm.

- 20 lpm flow rate at the outlet.

- valve head with control knob.

White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).

Scale-resistant hand spray and shock-resistant tip.

Reinforced, food-grade, white flexible hose L. 0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

These pre-rinse sets can be installed close to the splashback.

ADVANTAGES

Rapid fill: full flow rate 20 lpm

Telescopic, swivelling rapid-fill spout

Increased resistance: water-free valve heads

Anti-torsion rotating nut and PVC sheath

TECHNICAL CHARACTERISTICS

Twin hole pre-rinse set with mixer

Ref. G6532
Flow rate 20 lpm with the bib tap; 9 lpm via the hand spray
Connector M1/2"
Finish Chrome-plated brass
Drop Height 360 - 600mm
Width to the wall 35 - 162 mm
Height 1125 - 1245 mm

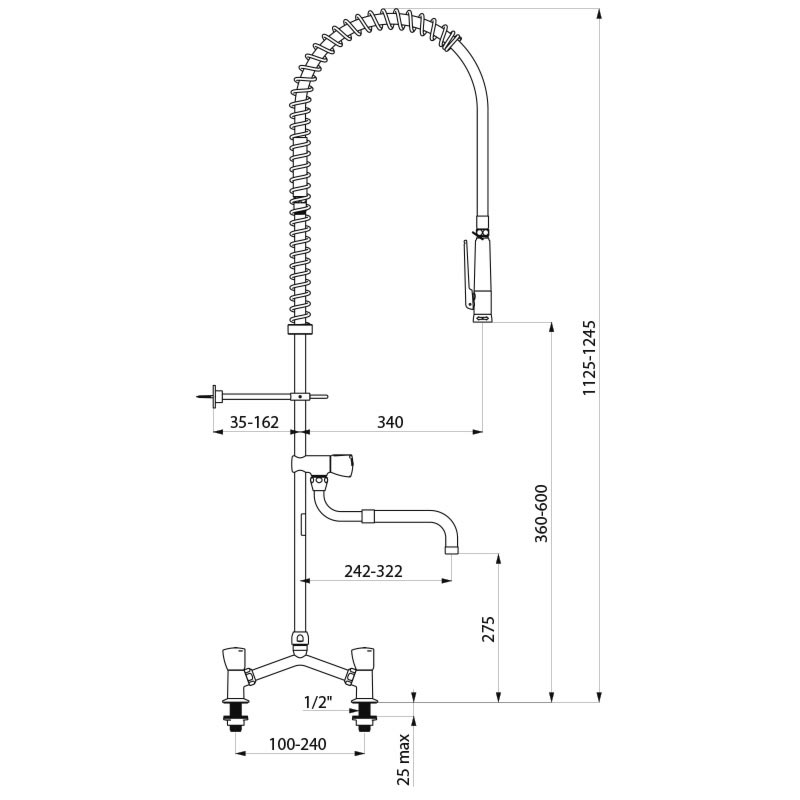

Twin hole pre-rinse set with mixer - scheme

DOWNLOADS

Twin hole pre-rinse set with mixer

Ref. G6532 To download one or several documents linked to this product, please select the type of file you require :
