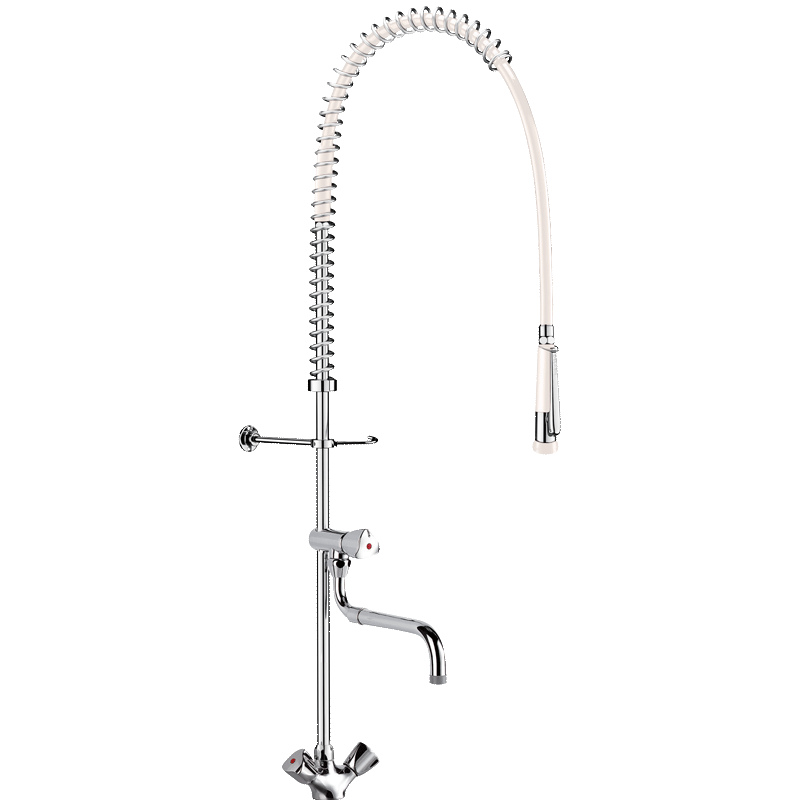

Pre-rinse set with mixer

Ref. G6632
With bib tap and swivelling telescopic spout
  • Pre-rinse set with mixer
  • Pre-rinse set with mixer
Pre-rinse set with mixer

DESCRIPTION

Pre-rinse set with mixer

Ref. G6632

Complete pre-rinse set with bib tap.

Suitable for intensive use in professional kitchens.

Single hole deck-mounted mixer with:

- valve head with control knobs.

- F3/8" flexible connectors and non-return valves.

- reinforced fixing via 2 threaded rods and back-nuts.

Bib tap with:

- telescopic, swivelling spout L. 200 - 290mm with 20 lpm flow rate at the outlet.

- valve head with control knob.

White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).

Scale-resistant hand spray and shock-resistant tip.

White, reinforced, food-grade flexible hose L. 0.95m.

3/4" brass column.

Adjustable wall bracket.

Stainless steel spring guide.

10-year warranty.

ADVANTAGES

Rapid fill: full flow rate 20 lpm

Increased resistance: water-free valve heads

Telescopic, swivelling rapid-fill spout

Anti-torsion rotating nut and PVC sheath

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. G6632
Flow rate 20 lpm with the bib tap; 9 lpm via the hand spray
Connector F3/8"
Finish Chrome-plated brass
Drop Height 310 - 550mm
Width to the wall 35 - 162 mm

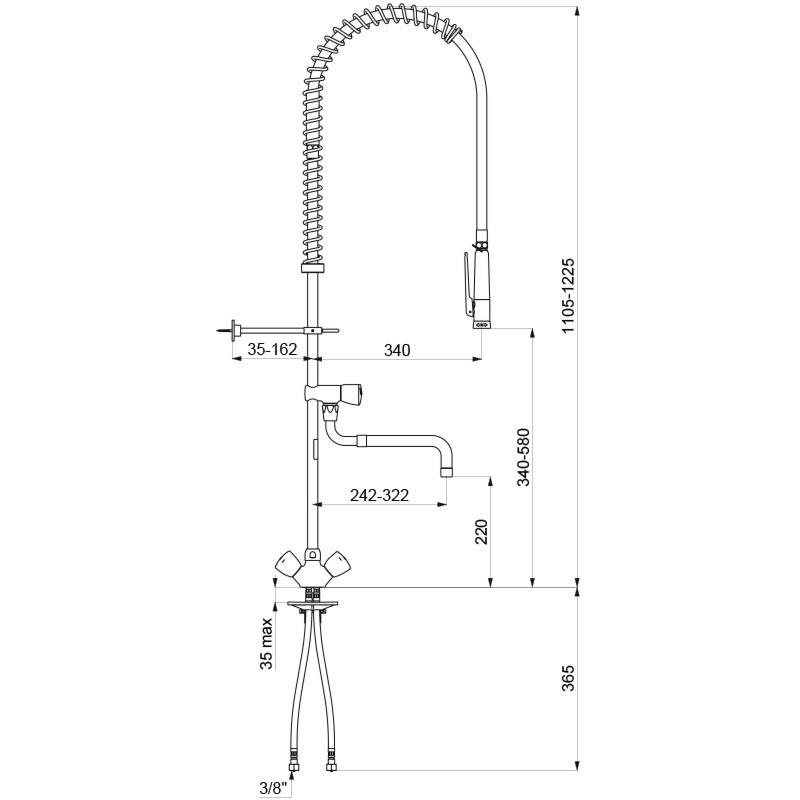

Pre-rinse set with mixer - scheme
