TEMPOMATIC MIX 4 electronic mixer

Ref. 490006LH
Integrated batteries, stopcocks
  • TEMPOMATIC MIX 4 electronic mixer
  • TEMPOMATIC MIX 4 electronic mixer
  • TEMPOMATIC MIX 4 electronic mixer
TEMPOMATIC MIX 4 electronic mixer

DESCRIPTION

TEMPOMATIC MIX 4 electronic mixer

Ref. 490006LH

Deck-mounted electronic basin mixer:

Battery-operated with integrated 123 6V Lithium batteries.

Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.

Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.

Scale-resistant flow straightener.

Duty flush (~60 seconds every 24 hours after last use).

Active, infrared presence detection, sensor at the end of the spout optimises detection.

Chrome-plated metal body.

Cap fixed in place by 2 concealed screws.

PEX flexibles with filters and non-return valves.

Fixing reinforced by two stainless steel rods.

Anti-blocking security.

Side temperature control with long lever and adjustable maximum temperature limiter.

Suitable for people with reduced mobility.

10-year warranty.

ADVANTAGES

Total hygiene: no manual contact

90% water savings

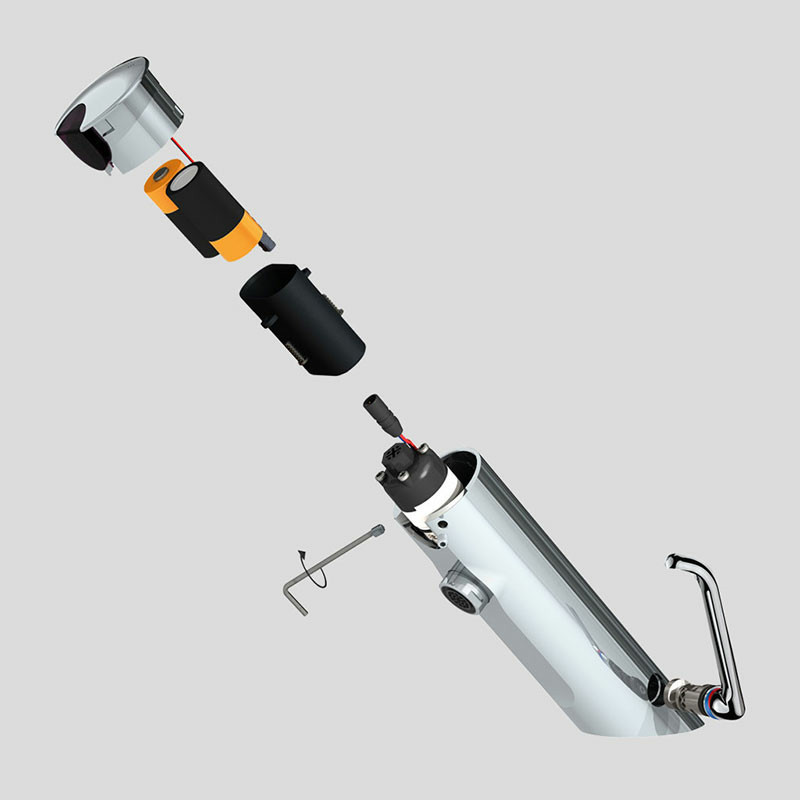

Batteries integrated into the body of the mixer

Anti-bacterial proliferation duty flush

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX 4 electronic mixer

Ref. 490006LH
Technology Electronic
Flow rate 3 lpm
Connector F3/8"
Supply 6V batteries
Drop Height 75 mm
Spout Length 110 mm
Installation: Deck-mounted

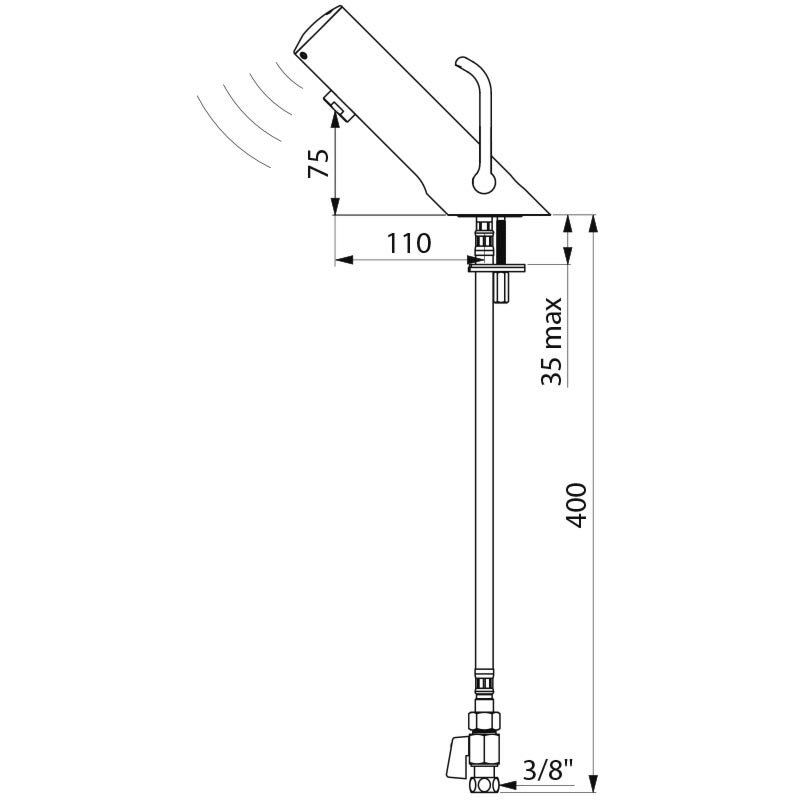

TEMPOMATIC MIX 4 electronic mixer - scheme
