Liquid soap dispenser

Name: Liquid soap dispenser
Brand: Delabie
SKU: 729150

Ref. 729150

Liquid soap dispenser for service ducts

Presentation

Ref. 729150

Wall-mounted liquid soap dispenser.

Vandal-resistant model for installation in service ducts, for walls up to 190mm.

Liquid soap dispenser.

Chrome-plated brass body and push-button.

Non-drip system (waterproof).

Mechanism can be locked via grub screw.

For remote tanks (tank not supplied) supplied with a 1.20m flexible tube.

Wall-mounted soap dispenser with 10-year warranty.

Characteristics

Ref. 729150

Finish	Chrome-plated brass body and push-button
Spout Length	32 mm
Depth	75 mm
Installation:	Wall-mounted
Length	For walls up to 190 mm

Download

Ref. 729150 To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

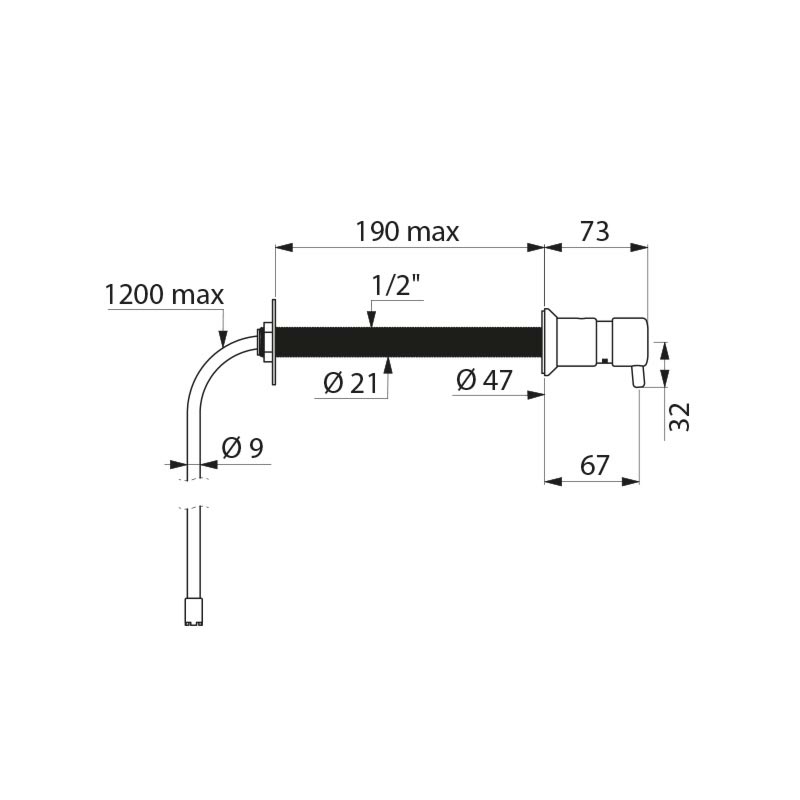

Line drawing

BIM files

Line drawing AutoCAD DWG

Hi-res EPS image
