DELTA wall-hung urinal

Ref. 134770
Polished satin 304 stainless steel - Rear water inlet
  • DELTA wall-hung urinal
DELTA wall-hung urinal

DESCRIPTION

DELTA wall-hung urinal

Ref. 134770

Wall-hung individual rimless urinal.

Compatible with all standard frame systems on the market.

Bacteriostatic 304 stainless steel. Polished satin finish.

Stainless steel thickness: 1.2mm.

Rear (recessed) water inlet.

Recessed waste outlet. Concealed trap.

Quick and easy to install from the front thanks to a stainless steel mounting frame.

Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.

CE marked. Complies with European standard EN 13407 for 2L flush.

Weight: 7.5kg.

10-year warranty.

[Formerly ref: 0311160001]

ADVANTAGES

Bacteriostatic 304 stainless steel

TECHNICAL CHARACTERISTICS

DELTA wall-hung urinal

Ref. 134770
Thickness 1.2 mm
Finish 304 polished satin stainless steel
Polished satin 304 stainless steel
Width 350 mm
Height 585 mm
Length 385 mm

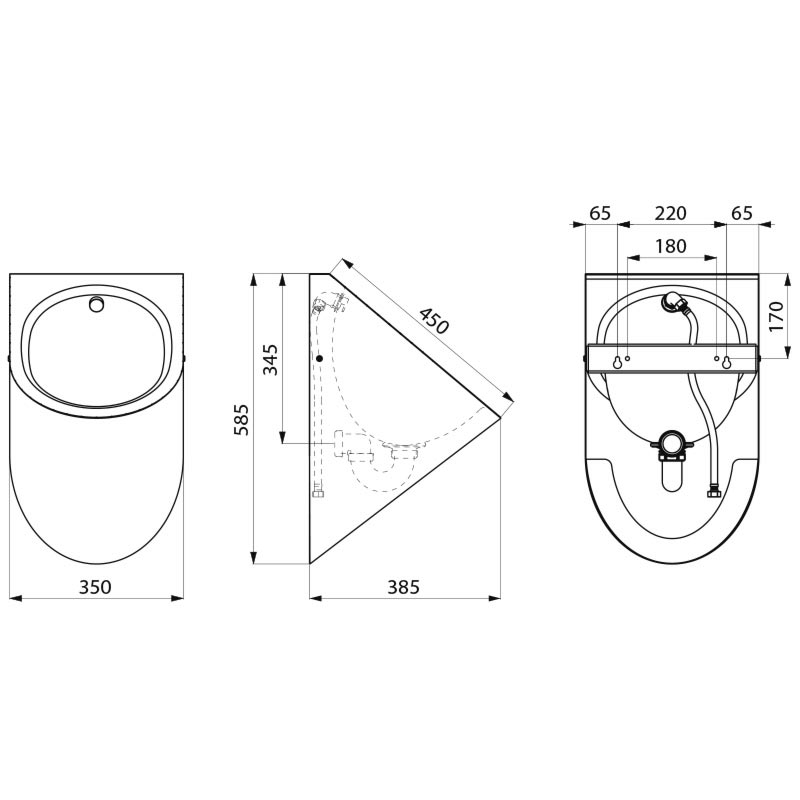

DELTA wall-hung urinal - scheme

DOWNLOADS

DELTA wall-hung urinal

Ref. 134770 To download one or several documents linked to this product, please select the type of file you require :
