TEMPOMIX shower panel

Ref. 790310
Time flow single control
  • TEMPOMIX shower panel
print
phone

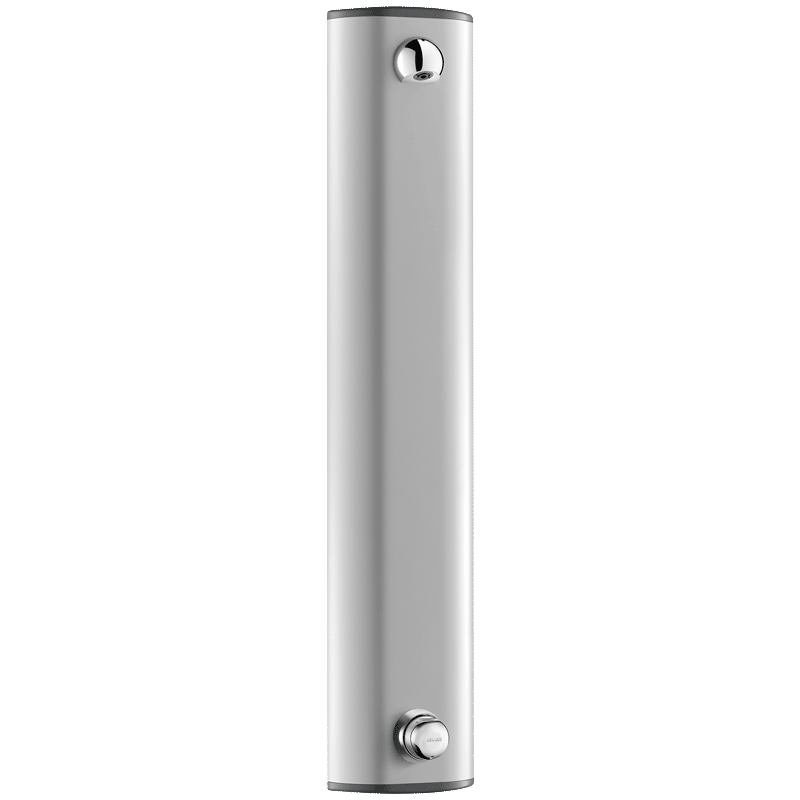

TEMPOMIX shower panel

DESCRIPTION

TEMPOMIX shower panel

Ref. 790310

Time flow shower panel with fixed shower head:

Anodised aluminium shower panel for wall-mounted, exposed installation.

Concealed inlet via flexibles M½".

TEMPOMIX mixer with adjustable maximum temperature limiter.

Soft-touch operation.

Time flow ~30 seconds.

Flow rate 6 lpm at 3 bar.

Chrome-plated tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.

Concealed fixings.

Filters and non-return valves.

10-year warranty.

ADVANTAGES

80% water savings

Temperature control on the mixer

Aluminium panel, brass controls

TECHNICAL CHARACTERISTICS

TEMPOMIX shower panel

Ref. 790310
Technology Time flow
Flow rate 6 lpm
Connector 1/2"
M1/2"
Finish Aluminium
Width 210 mm
Depth 65 mm
Water supply Concealed
Heith 1050 mm
Height 1050 mm
Length 210 mm

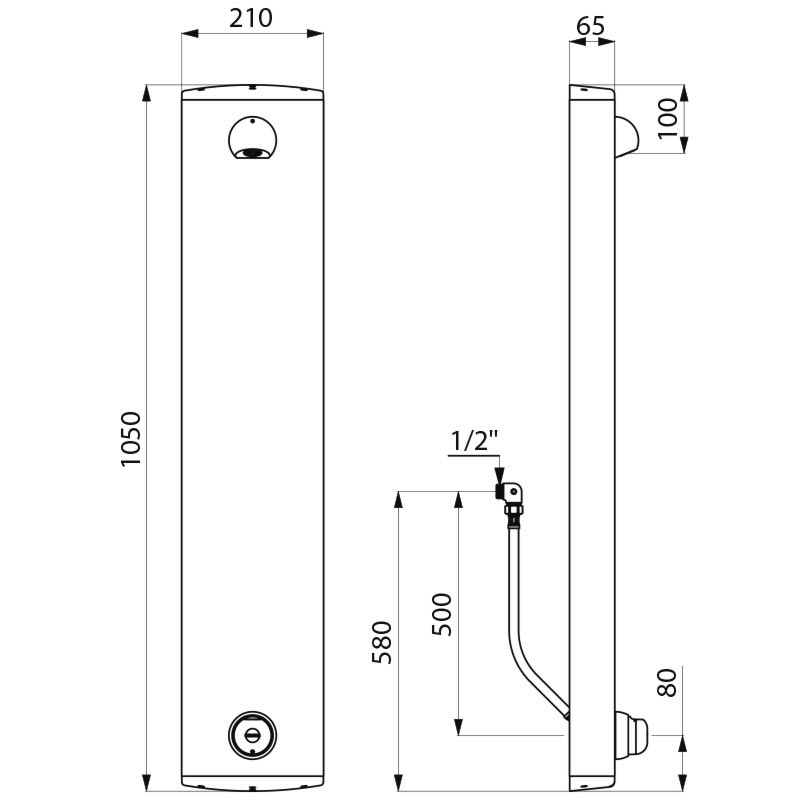

TEMPOMIX shower panel - scheme
