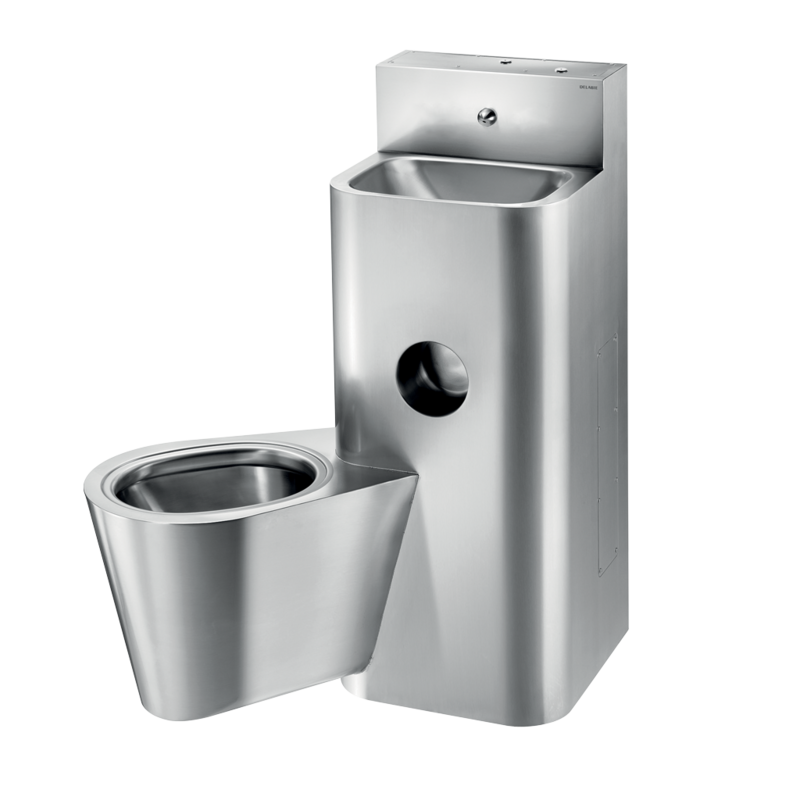

KOMPACT washbasin and wall-hung WC combination

Ref. 160400
Polished satin 304 stainless steel - Wall mounted - Wall hung WC left side
  • KOMPACT washbasin and wall-hung WC combination
print
phone
KOMPACT washbasin and wall-hung WC combination

DESCRIPTION

KOMPACT washbasin and wall-hung WC combination

Ref. 160400

Combination unit: washbasin and suspended WC pan on left side with recessed toilet roll holder.

Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.Bacteriostatic 304 stainless steel.

Polished satin finish.

Stainless steel unit thickness: 2mm.

Rounded corners and edges for improved safety.

Smooth surface for easy cleaning.

Suitable for prisons, police stations, etc.

WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.

Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".

WC equipped with time flow flush valve, 7 second time flow, M3/4".

Water inlet: washbasin M1/2", WC M3/4".

Recessed horizontal water outlet: Ø 100mm.

Supplied with washbasin siphon.

Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.

Weight: 36kg.

[Formerly ref: 0610030004]

ADVANTAGES

Bacteriostatic 304 stainless steel

Suitable for secure sector

TECHNICAL CHARACTERISTICS

KOMPACT washbasin and wall-hung WC combination

Ref. 160400
Thickness 2 mm
Finish Polished satin 304 stainless steel
Width 725 mm
Height 1000 mm
Length 735 mm
KOMPACT washbasin and wall-hung WC combination - scheme

DOWNLOADS

KOMPACT washbasin and wall-hung WC combination

Ref. 160400 To download one or several documents linked to this product, please select the type of file you require :
