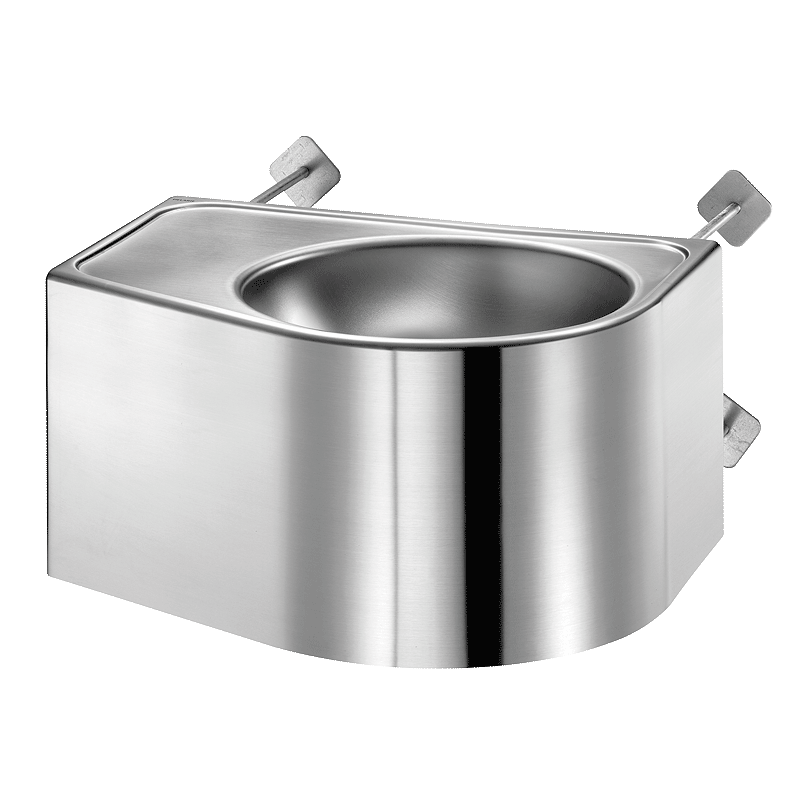

DUO S TC R washbasin

Ref. 160360
Polished satin 304 stainless steel - Wall-mounted with concealed waste
  • DUO S TC R washbasin
DUO S TC R washbasin

DESCRIPTION

DUO S TC R washbasin

Ref. 160360

Wall-mounted washbasin with through-the-wall installation for service ducts.

Integrated countertop.

Basin on the right.

Basin internal diameter: 310mm.

Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm

Rounded edges prevent injury.

Vandal-resistant: shrouded basin.

200mm threaded rod can be cut to size (other lengths are available on request).

Recessed horizontal waste outlet Ø 1".

Flat perforated waste, without screws:easy cleaning and vandal-resistant.

Without overflow. Supplied with fixing elements.

CE marked. Complies with European standard EN 14688.

Weight: 8.5kg.

ADVANTAGES

Bacteriostatic 304 stainless steel

Suitable for secure sector

TECHNICAL CHARACTERISTICS

DUO S TC R washbasin

Ref. 160360
Thickness 1.2 mm
Finish Polished Satin Stainless Steel
Polished satin 304 stainless steel
Width 500 mm
Height 250 mm
Length 270 / 380 mm

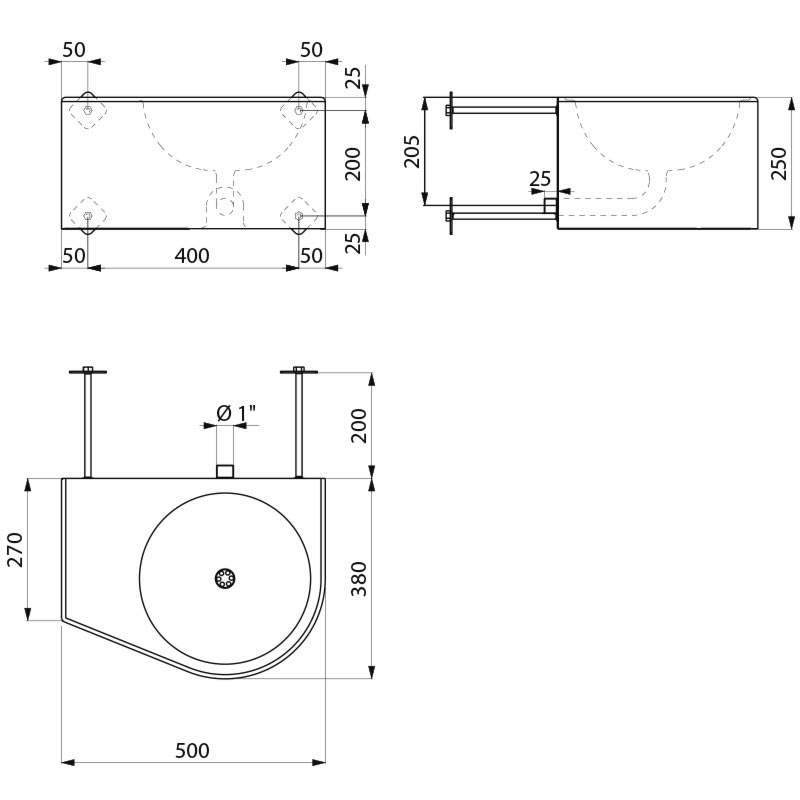

DUO S TC R washbasin - scheme
