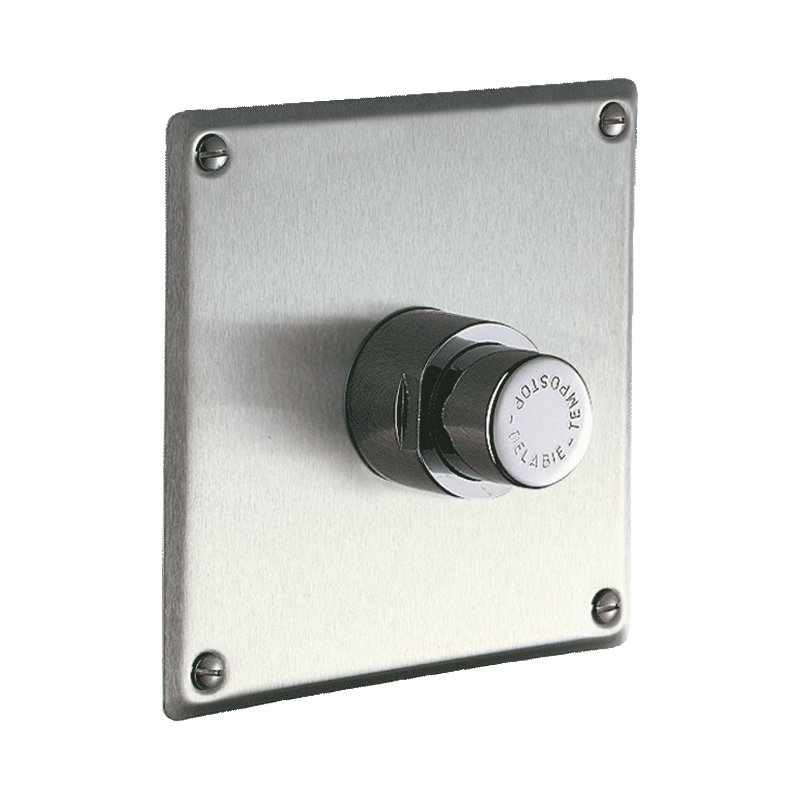

TEMPOSTOP time flow urinal valve

Ref. 779421
Time flow 7 seconds
  • TEMPOSTOP time flow urinal valve
print
phone
TEMPOSTOP time flow urinal valve

DESCRIPTION

TEMPOSTOP time flow urinal valve

Ref. 779421

Recessed time flow urinal valve:

For standard or siphon action urinals.

For recessed installation.

Recessing depth can be adjusted from 25 to 45mm.

Stainless steel wall plate Ø 160x160mm.

Time flow ~7 seconds.

Flow rate pre-set at 0.25 l/sec. at 3 bar, can be adjusted.

Solid brass body M½".

10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

ADVANTAGES

Time flow 7 seconds

Wall recessed installation

Withstands over 500,000 operations

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow urinal valve

Ref. 779421
Technology Time flow
Flow rate 0.25 l/sec.
Connector 1/2"
Spout Length 160 mm
Depth 160 mm
Height 160 mm
Length 160 mm

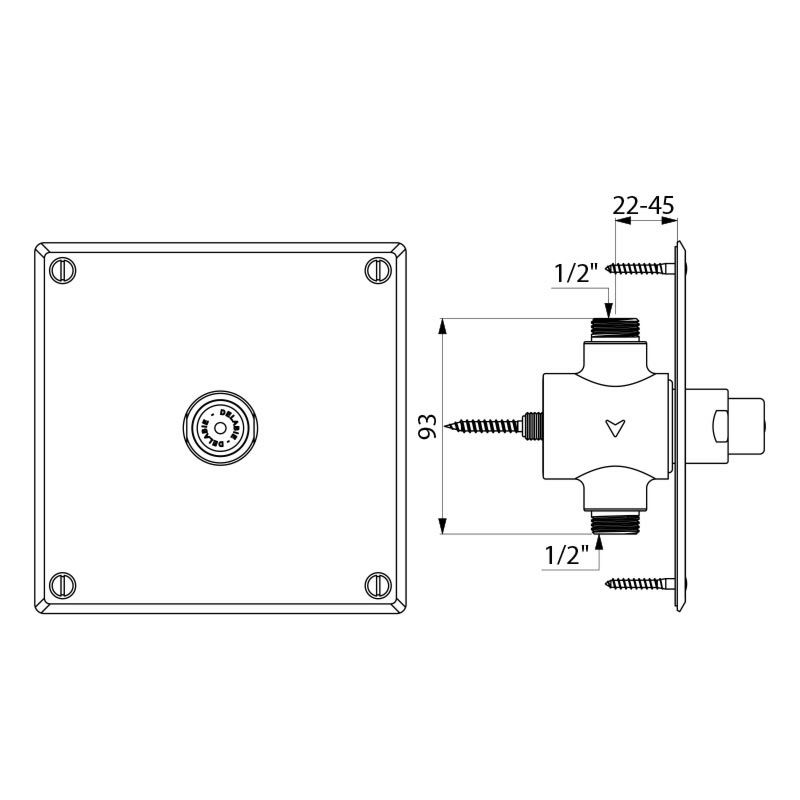

TEMPOSTOP time flow urinal valve - scheme

DOWNLOADS

TEMPOSTOP time flow urinal valve

Ref. 779421 To download one or several documents linked to this product, please select the type of file you require :
