Angled stainless steel grab bar 135¡, satin, 400 x 400mm

Ref. 5082S
UltraSatin polished satin stainless steel, 3 fixing points
  • Angled stainless steel grab bar 135¡, satin, 400 x 400mm
  • Angled stainless steel grab bar 135¡, satin, 400 x 400mm
  • Angled stainless steel grab bar 135¡, satin, 400 x 400mm
  • Angled stainless steel grab bar 135¡, satin, 400 x 400mm
Angled stainless steel grab bar 135¡, satin, 400 x 400mm

DESCRIPTION

Angled stainless steel grab bar 135¡, satin, 400 x 400mm

Ref. 5082S

Angled grab bar 135¡ for people with reduced mobility, ¯ 32mm.

For use as a handrail (horizontal part) or as a grab bar (135¡ part) for WCs, showers or baths.

Universal for either left or right side.

Dimensions: 400 x 400mm.

Bacteriostatic 304 stainless steel tube.

UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.

Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).

40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.

3 fixing points prevent the hand from getting trapped and simplify installation.

Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, ¯ 72mm.

Supplied with stainless steel screws for concrete walls.

Tested to over 250kg. Maximum recommended user weight: 170kg.

Angled grab bar with a 10 year warranty.

CE marked.

ADVANTAGES

304 stainless steel: reduces bacterial development

Tested to over 250kg

40mm gap between bar and wall: minimal space

UltraSatin: Smooth surface easy to clean

TECHNICAL CHARACTERISTICS

Angled stainless steel grab bar 135¡, satin, 400 x 400mm

Ref. 5082S
Finish 304 stainless steel UltraSatin polished satin
Width to the wall 40mm
Diameter 32mm
Destination For WCs For showers For baths
Height 400mm
Length 400mm

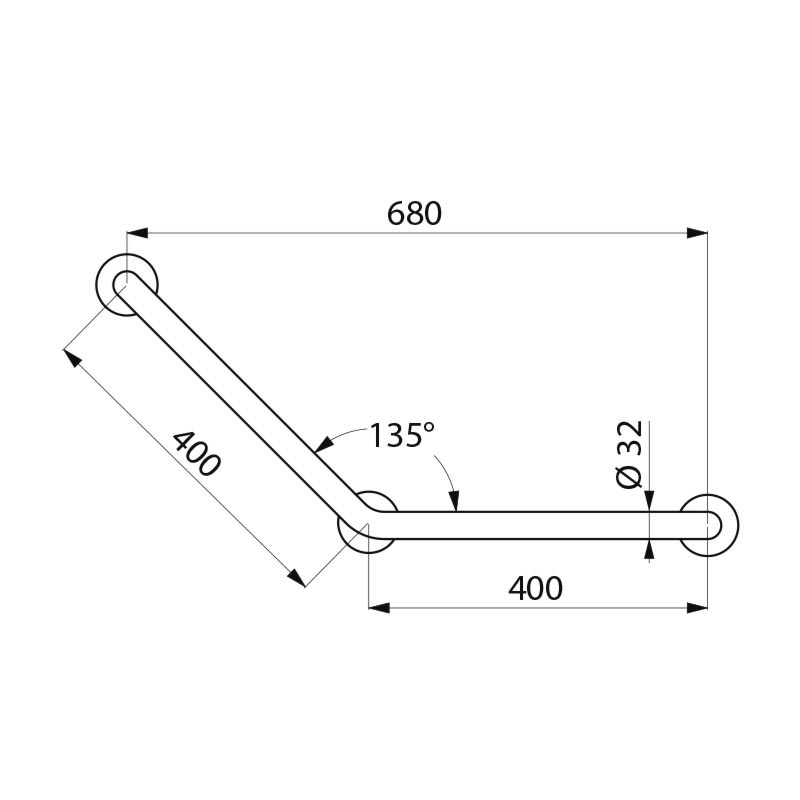

Angled stainless steel grab bar 135¡, satin, 400 x 400mm - scheme
