Classicflow

DESCRIPTION

Classicflow

Ref. GW01 25 04 02

The hot air hand dryer consists of a one-piece casing in stainless steel and a rotary 360º nozzle.

The casing is made of stainless steel and polished finishing, 2,0 mm

thickness.

The dryer is operated by an electronic infra-red sensor and it automatically stops after the hands have been withdrawn from the sensor field or after 90 seconds

(vandal-proof disconnection).

The dryer delivers an airflow of 210 m3

/h at a speed of 115 Km/h.

The air flows as long as the user continues to use it.

The total measurements of the hot air hand dryer are 240 x 265 x 205 mm and its total net weight is 5,2 Kg

ADVANTAGES

Quiet Operation: Performs at a lower sound level than competing models

No touch

Durable and Vandal Resistant

Ambient Temperature: Reduces power consumption with use of ambient temperature and supports multiple dryers on one circuit

TECHNICAL CHARACTERISTICS

Classicflow

Ref. GW01 25 04 02
Thickness 2 mm
Technology Infrared sensor
Finish Polished 304 stainless steel
Width 258 mm
Depth 200 mm
Traffic Medium - High
Power 2500 W
Dry Time 25 sec
Air Speed 95 km/h
Air Flow 210 m³/h
Height 232 mm
Warranty The warranty for your product

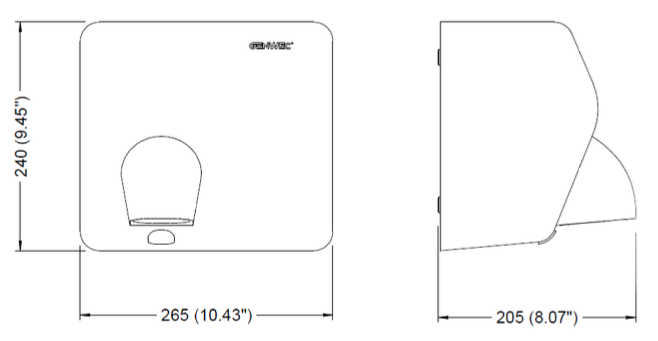

Classicflow - scheme
