DESCRIPTION

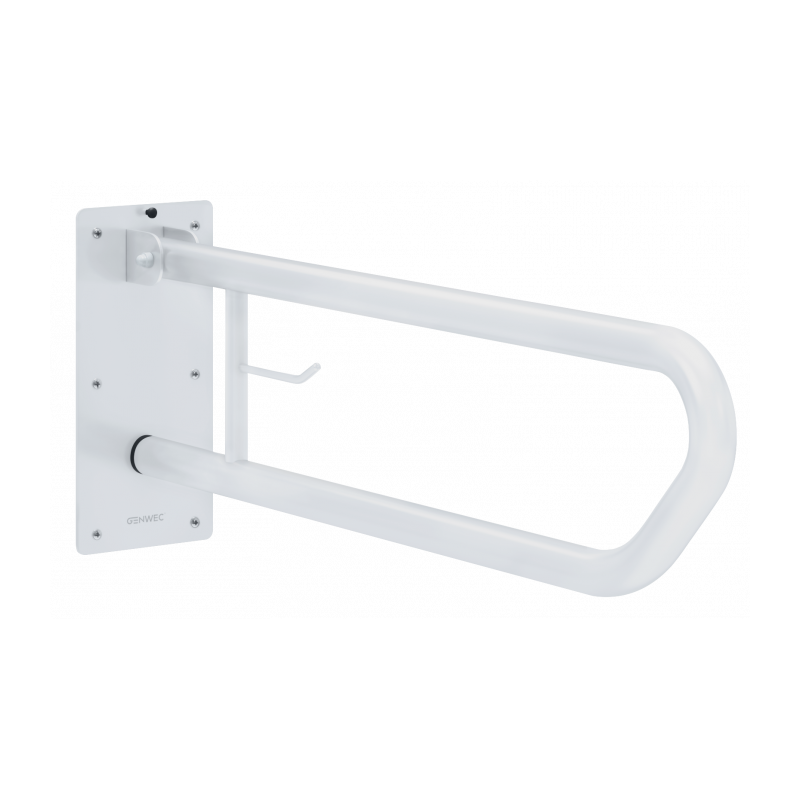

Folding bar 600mm w/paper dispenser white steel
Ref. GW11 08 03 00Vertical folding bar with gradual breaking system incorporated.
This horizontal installation bar is composed of carbon steel tubing with 32 mm of diameter and 1.5 mm of thickness.
The tube has been bent as a ÒUÓ
and it is reinforced by a joist with a paper hanger located in the middle.
The wall support is composed of carbon steel plate with 3mm of thickness, and two carbon steel hinges with 3 mm of thickness using to turn
the folding bar. All the pieces have been welded by TIG method.
There are 6 bores on the wall mounted to support the bar on the wall.
All the pieces of the bar have a white epoxy painted finish.
The folding bar complies the ADA regulation.
The bar is fixed to the wall with 6 nylon plugs of 10X60 and AISI304 stainless steel screws of 8X70 with hexagonal head.
Grab bar will support loads in excess of 120Kg if properly installed.
The total measures of the product are 300x100x800 mm.
