DESCRIPTION

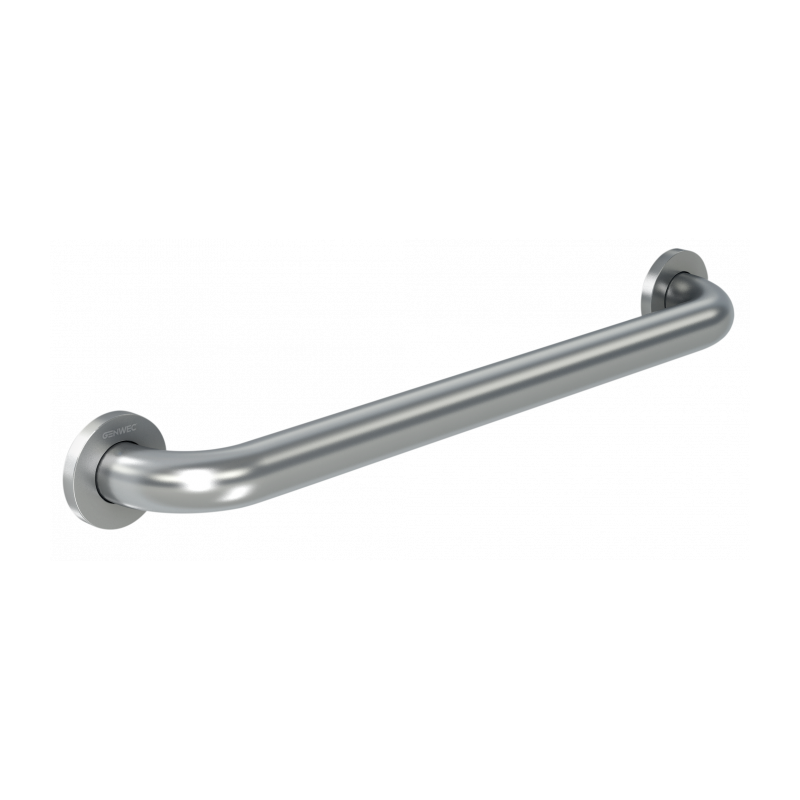

Straight bar 750mm brushed stainless steel
Ref. GW11 04 04 01GENWEC 750mm grab bar in AISI 304 stainless steel (product codes
GW11 04 04 01, GW11 04 04 02) or AISI 201 stainless steel
(GW11 04 03 00).
Grab bar must have a thickness of 1.5mm and 32mm
outside diameter.
Clearance between grab bar and wall shall be 45mm.
Mounting flanges shall have 3 holes for a firmly wall fixing.
Screws shall
be concealed with 80mm diameter covers which will snap over
mounting flanges to conceal screws.
Grab bar shall be supplied with screws and wall plugs and shall support
a static and dynamic load of 120Kg.
Grab bar shall conform with harmonized technical specifications covered in regulations
EN10213:2007 y EN22768-1:1994.
