DESCRIPTION

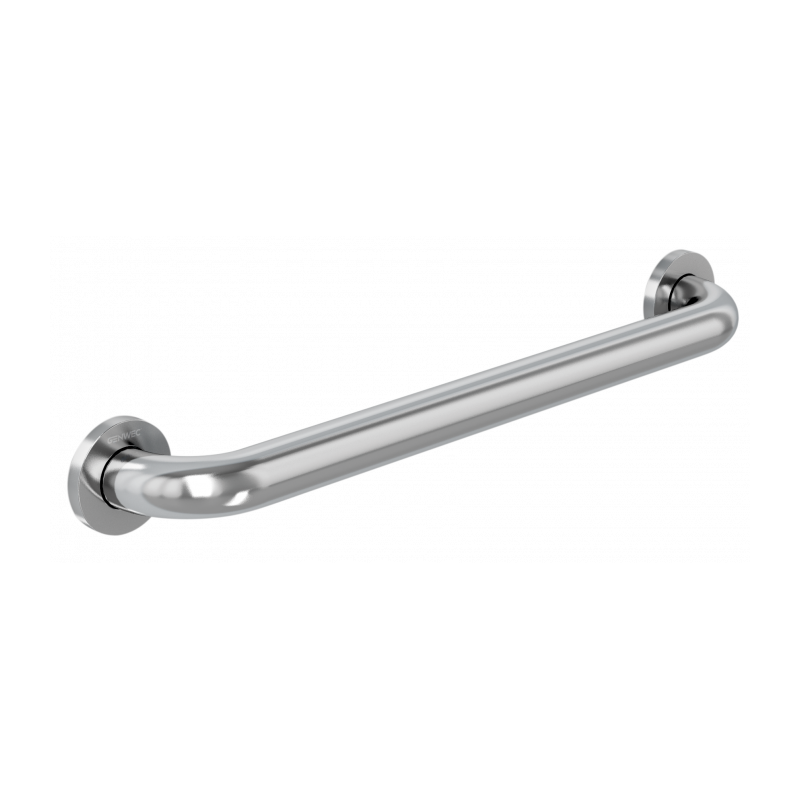

Straight bar 600mm polished stainless steel
Ref. GW11 03 04 02GENWEC 600mm grab bar in AISI 304 stainless steel
¥ Grab bar Ð 1.5mm tube thickness with 32mm outside diameter. AISI
304 stainless steel (product codes GW11 03 04 01 y GW11 03 04 02),
AISI 201 stainless steel (GW11 03 03 00). Clearance between grab bar
and wall is 44mm.
- ¥ Concealed mounting flanges Ð One piece, 2.5mm AISI 304 stainless
steel. 76mm diameter with 3 holes for attachment to wall.
- ¥ Snap flange covers Ð One piece, 0.5mm AISI 304 stainless steel. 80mm
diameter. Each cover snaps with mounting flange to conceal mounting
screws.
- ¥ Fixings set Ð 6 mounting screws (3 per flange) 6x50mm and 6 wall
plugs.
