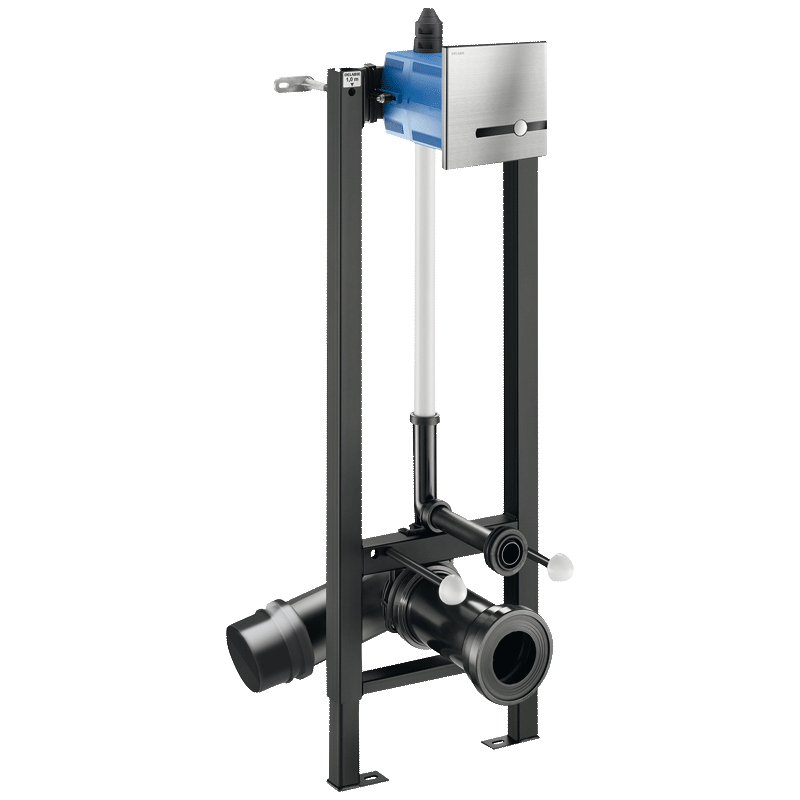

TEMPOFIX 3 wall-mounted frame system with electronic WC valve

DESCRIPTION

TEMPOFIX 3 wall-mounted frame system with electronic WC valve

Frame system W.350mm for wall-hung WCs: - Black powder-coated steel frame. - Fixes to load-bearing walls. - Frame height can be adjusted from 0 - 200mm (with 1m mark). - Ø 32mm flush tube with Ø 55mm connection washer. - ABS soil pipe, Ø 110mm HDPE outlet with waterproof seal, with 2 setting positions. - Delivered pre-mounted. - Compatible with solid walls from 10 - 120mm. - 10-year warranty. Fitted with TEMPOMATIC dual control F3/4" electronic direct flush valve: - Battery-operated with 123 6V Lithium batteries. - Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button with integrated electronics. - Shock-resistant infrared presence detection sensor. - Waterproof recessing housing. - Detection delay is 10 seconds. - Voluntary activation (push-button with anti-blocking) or automatically when the user leaves. - "Intelligent" automatic rinsing (flush volume adapts according to use). - 3 programmes (rinsing volume can be set according to type of WC pan). - Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF) after the last use. - Backflow prevention device inside the housing. - Integrated stopcock and flow rate adjuster. - Compatible with sea water and grey water. Technical features: see TEMPOMATIC dual control ref. 464PBOX-464006. Kit contents: (564060DE): frame system, soil pipe Ø 110mm, flush tube, recessed housing with cover, valve configured for system flush, vacuum breaker, stopcock, connection accessories. (464006): control plate, 6V lithium batteries, collar for waterproofing, solenoid valve, cartridge.
