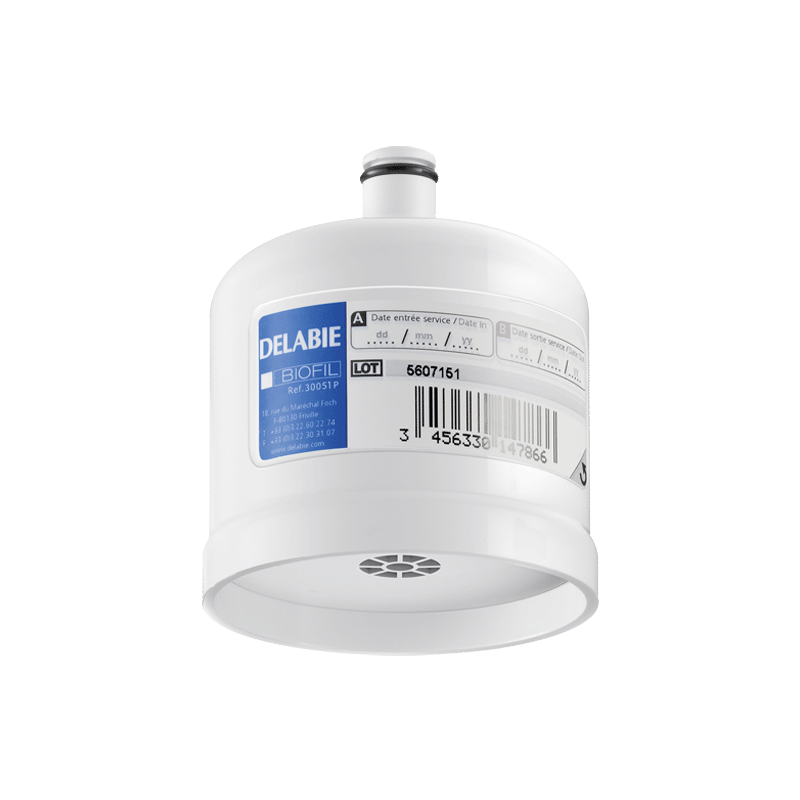

Anti-bacterial BIOFIL cartridge filter

Ref. 30051P.10P
Single use cartridge P, laminar flow
  • Anti-bacterial BIOFIL cartridge filter
  • Anti-bacterial BIOFIL cartridge filter
Anti-bacterial BIOFIL cartridge filter

DESCRIPTION

Anti-bacterial BIOFIL cartridge filter

Ref. 30051P.10P

Single use anti-bacterial BIOFIL cartridge P with sterilising grade of 0.1μm absolute-rated.

Cartridge filter with waterproof seal and with laminar effect spray.

Hydrophilic polyethylene hollow fibres.

Filtration area: 1,400cm².

Filtration flow rate: 12 lpm at 3 bar (filter only, excludes any flow rate restrictor/regulator in the shower).

Maximum upstream pressure at point-of-use: 5 bar.

Length of maximum use: 62 days after installation.

Compatible with and resistant to chemical and thermal shocks.

CE class 1 non-sterile anti-bacterial filters.

Weight: 80g.

Packed in boxes of 10 pieces, individually wrapped, non-sterile.

TECHNICAL CHARACTERISTICS

Anti-bacterial BIOFIL cartridge filter

Ref. 30051P.10P
Technology Terminal filtration
Flow rate 12 lpm
Height 69 mm
Length Ø 58 mm
Anti-bacterial BIOFIL cartridge filter - scheme
