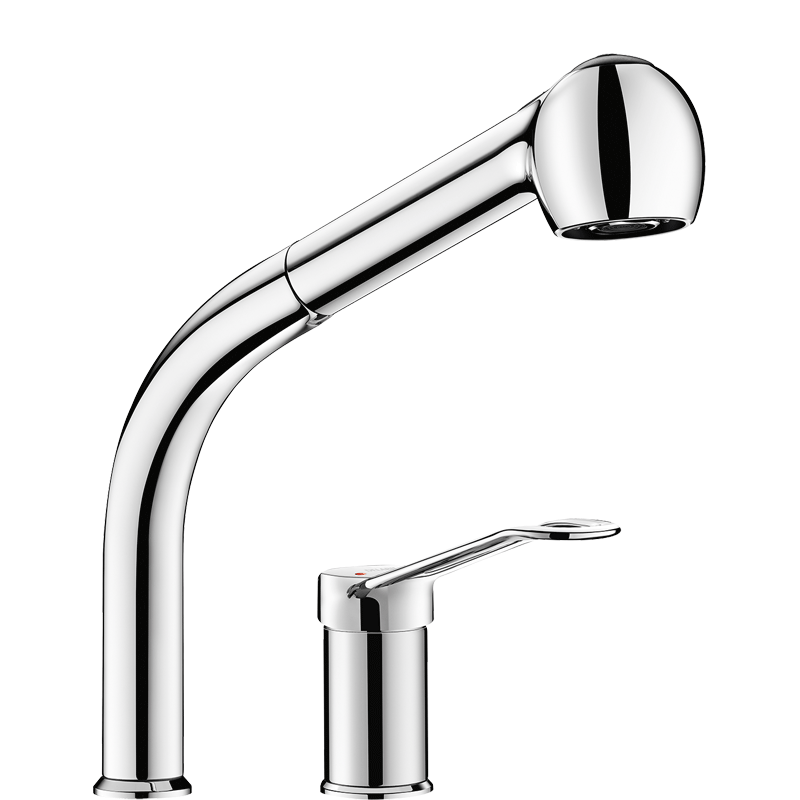

Pressure-balancing mixer set and column with retracting hand spray

Ref. 2599EP
For neonatal care bath tubs
  • Pressure-balancing mixer set and column with retracting hand spray
  • Pressure-balancing mixer set and column with retracting hand spray
Pressure-balancing mixer set and column with retracting hand spray

DESCRIPTION

Pressure-balancing mixer set and column with retracting hand spray

Ref. 2599EP

SECURITHERM pressure-balancing sink mixer set with retracting hand spray on a column.

Ideal for babies' baths.

Anti-scalding safety: HW flow rate is reduced if CW supply fails.

Securitouch thermal insulation prevents burns.

Retracting hand spray with 2 jet options: flow straightener/rain effect.

Swivelling column H. 200mm L. 220mm.

Retracting hand spray with two jet options (flow straightener/rain effect)

Ø 35mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.

Mixer body and column with smooth interiors.

Flow rate 12 lpm at 3 bar.

Sculptured control lever.

Mixed water outlet L. 160mm.

BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).

Counterweight specific to flexible hose.

F⅜" PEX flexibles with filters and non-return valves.

Reinforced fixing via 2 stainless steel rods.

10-year warranty.

TECHNICAL CHARACTERISTICS

Pressure-balancing mixer set and column with retracting hand spray

Ref. 2599EP
Technology SECURITHERM EP
Flow rate 12 lpm
Connector F3/8"
Finish Chrome-plated brass
Drop Height 200 mm
Spout Length 220 mm

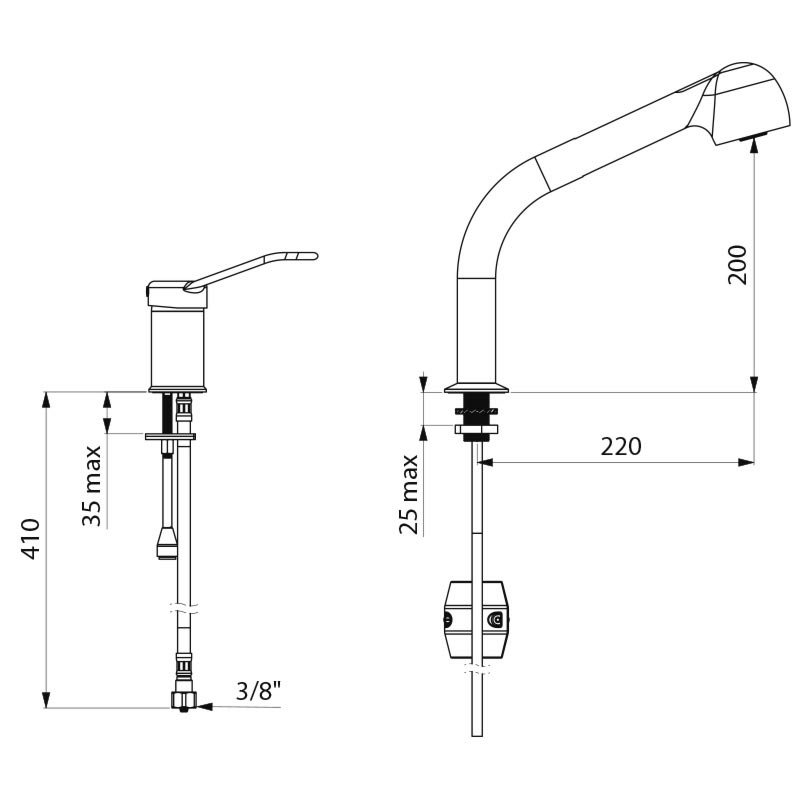

Pressure-balancing mixer set and column with retracting hand spray - scheme

DOWNLOADS

Pressure-balancing mixer set and column with retracting hand spray

Ref. 2599EP To download one or several documents linked to this product, please select the type of file you require :
