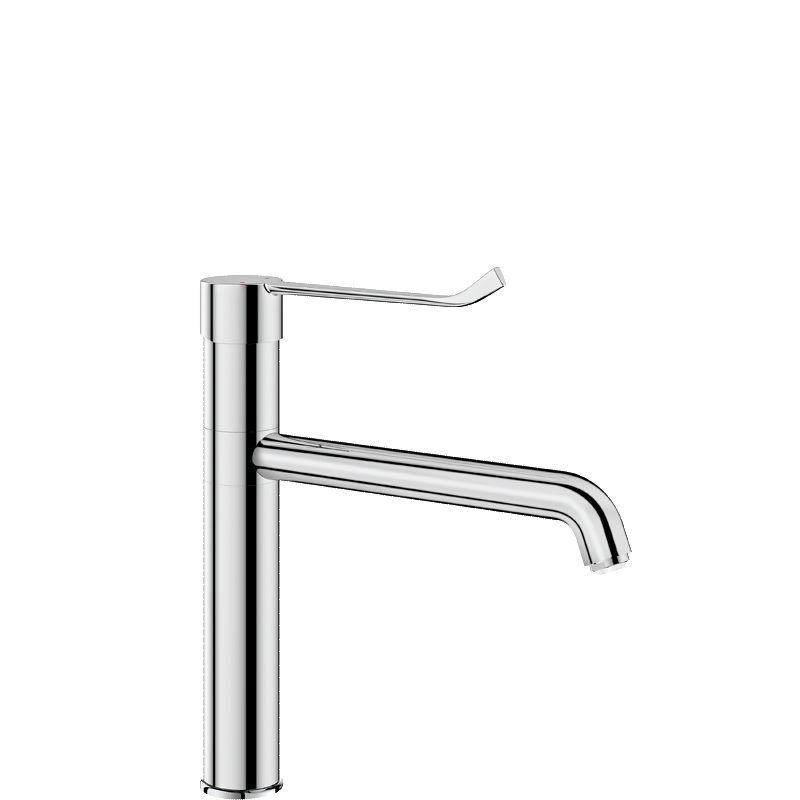

Mechanical mixer for sinks or troughs

Ref. 2564T2
Single control single hole tall mixer with ceramic cartridge
  • Mechanical mixer for sinks or troughs
print
phone
Mechanical mixer for sinks or troughs

DESCRIPTION

Mechanical mixer for sinks or troughs

Ref. 2564T2

Deck-mounted mechanical basin mixer.

Single control single hole mixer with swivelling spout H. 165mm L. 220mm.

Tall mixer with BIOSAFE outlet suitable for fitting a BIOFIL terminal filter.

Ø 35mm ceramic cartridge and pre-set maximum temperature limiter.

Body and spout with smooth interiors (reduces bacterial development).

Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.

Flow rate regulated at 5 lpm.

Hygiene control lever L. 185mm requires no manual contact.

PEX flexibles F3/8".

Fixings reinforced by 2 stainless steel rods and back-nuts.

Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics

10-year warranty.

TECHNICAL CHARACTERISTICS

Mechanical mixer for sinks or troughs

Ref. 2564T2
Flow rate 5 lpm
Connector F3/8"
Finish Chrome-plated brass
Drop Height 165 mm
Spout Length 220 mm
Temperature limiter 41 °C

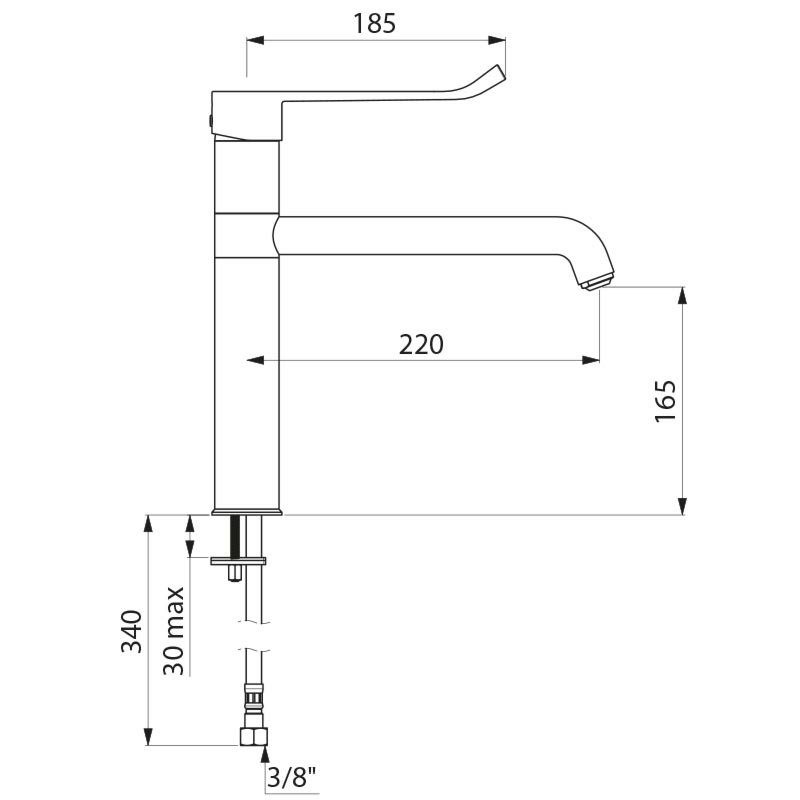

Mechanical mixer for sinks or troughs - scheme

DOWNLOADS

Mechanical mixer for sinks or troughs

Ref. 2564T2 To download one or several documents linked to this product, please select the type of file you require :
